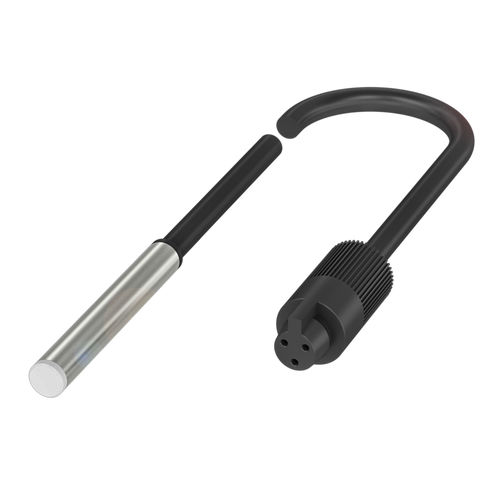

Capacitive proximity sensor BCS0010cylindricalM4flush
Add to favorites
Compare this product
Characteristics
- Technology
- capacitive
- Shape
- cylindrical
- Diameter
- M4
- Mounting
- flush
- Material
- stainless steel
- Protection level
- IEC, IP67, IP40
- Measuring range
Min.: 0.1 mm
(0 in)Max.: 1 mm
(0.04 in)- Process temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
Dimension
Ø 4 x 29 mm
Series
G04
Installation
for flush mounting
Connection
Cable with connector, Snap-In IP40, Binder 719-Female, 2.00 m, PUR
Interface
Special interface
Sensitivity
adjustable on base unit
Housing material
1.4301 stainless steel
Material sensing surface
PTFE
Approval/Conformity
CE
cULus
WEEE
IP rating per IEC 60529
IP67
