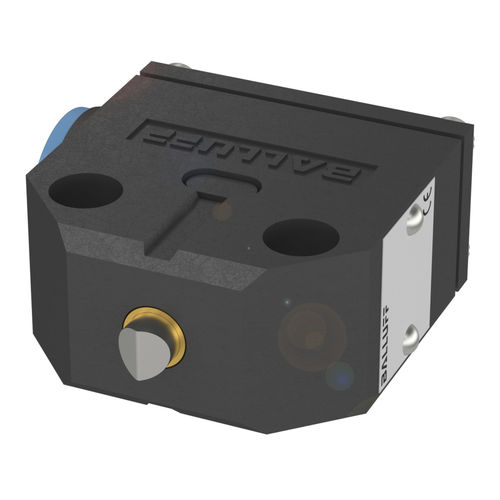

Rotating cam limit switch BNS004U

IECmechanicalindustrial

Dimension 40 x 20 x 47 mm Housing material Aluminium, Anodized Number of switching positions 1x Roller Version Snap contact Operating principle 1. Switch position: Mechanical Continuous current 1. Switch position: 5 A Rated operating voltage Ue 1. Switch position: 250 V AC Installation any Approach direction lateral or at right angles to mounting surface Approach speed 1. Switch position: 60 m/min Connection type 1. Switch position: Screw terminal Ambient temperature -5...85 °C IP rating per IEC 60529 IP67 Approval/Conformity CE UKCA CCC WEEE
