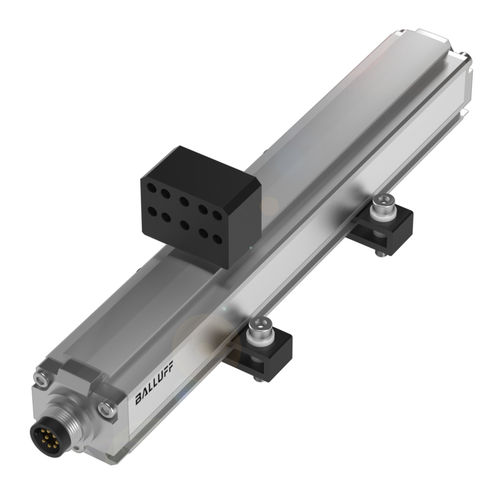

Linear position sensor BTL00P3magnetostrictiveanalogIP67
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Technology
- magnetostrictive
- Output signal
- analog
- Protection class
- IP67
- Applications
- industrial
- Other characteristics
- compact
- Measuring range
1,700 mm
(66.93 in)- Linearity
0 %
- Supply voltage
Max.: 28 V
Min.: 20 V
- Ambient temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Style
Profile series
Fastening detail
Mounting clamps
Housing material
Aluminium, Anodized
Magnets, number max.
1 pcs
Connection
Connector, M16x0.75, 8-pin
Analog output
Analog, current 4…20 mA
Resolution
≤ 0.2 µA
Repeat accuracy
≤ ± 0.2 µA
IP rating per IEC 60529
IP67
Approval/Conformity
CE
cURus
