Digital I/O module RSio series

EtherNet/IP6-I/O2-O

Overview

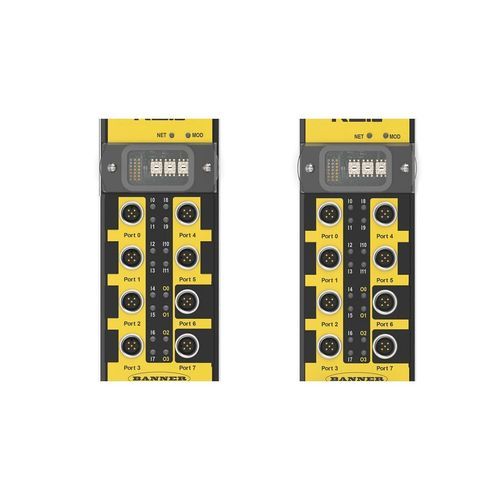

Banner's RSio Remote Safe I/O block delivers In‑Series Diagnostics (ISD) and six independently configurable hybrid I/O ports for integration into CIP Safety™ systems. Two configurable outputs provide control signals for final switching devices, safety‑rated devices or standard control elements. RSio is configured in Rockwell Automation's Studio 5000® via the included Add‑On Profile (AOP) EDS file.

Key Features

• Six independently configurable hybrid I/O ports supporting safety‑rated or standard devices for flexible port use
• Inputs accept dry contacts or solid‑state safety devices, support ISD chains and standard control signals
• Two configurable outputs for final switching; outputs provide ON/OFF status readback
• Each input supports up to 32 ISD‑enabled devices (daisy‑chained), enabling up to 192 devices per RSio and device‑level diagnostics for faster troubleshooting
• User‑selectable port presets for common safety devices (e‑stops, light curtains, safety switches) included in Banner's AOP/EDS file to simplify setup
• Power options: Mini power models (pass‑through up to 10 A) or M12 L‑Code power models (pass‑through up to 16 A) using the same M12 A‑Code I/O ports and core functionality
• Independent enable/disable of test pulses on inputs and outputs to match device and application requirements
• Machine‑mountable IP67 housing reduces wiring and cabinet space

Integration & Configuration
Configured entirely in Rockwell Automation's Studio 5000® (Logix Designer / GuardLogix environment) using Banner's included Add‑On Profile (EDS) file and user‑selectable port presets. This streamlines integration into CIP Safety™ systems and eliminates the need for additional configuration software.

Benefits

• Reduce wiring and cabinet requirements with machine‑mountable IP67 safe I/O
• Faster troubleshooting with device‑level diagnostics from ISD chains
• Flexible system design: mix safety and non‑safety devices on the same block
• Simplified setup and faster commissioning via Studio 5000® AOP/EDS presets

Technical specifications

• Product family / denomination: RSio
• Number of hybrid I/O ports: 6 hybrid inputs + 2 configurable outputs
• ISD (In‑Series Diagnostics): supports ISD device chains; up to 32 ISD devices per input
• Maximum ISD devices per RSio: up to 192 devices (6 inputs × 32 devices)
• Safety capability: up to Cat 4 / PLe and SIL3 (system dependent)
• Configuration: Studio 5000® via included Add‑On Profile (AOP) EDS file
• Port presets: user‑selectable presets for e‑stops, light curtains, safety switches, etc.
• Power options: Mini power models (pass‑through up to 10 A) or M12 L‑Code power models (pass‑through up to 16 A)
• I/O connector types: M12 A‑Code I/O ports (core functionality consistent across power models)
• Outputs: configurable for safety‑rated or standard devices; ON/OFF readback supported
• Input signal types: dry contacts or solid‑state safety devices and standard control signals
• Test pulses: enable/disable independently per input/output
• Environmental rating: IP67, machine‑mountable
• Integration protocols: CIP Safety™ compatible (Studio 5000 configuration)
