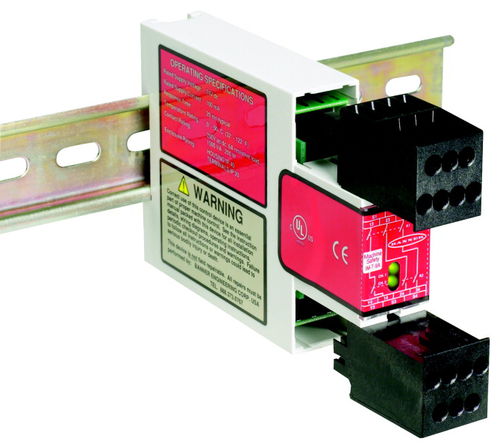

Emergency stop safety relay IM-T series

3 NO2 NONC

Increases the switching current capacity of low voltage primary safety devices to 6 amps Serves as a relay for primary safety devices with OSSD solid-state or hard contact outputs and external device monitoring, such as the EZ-SCREEN Offers 24V dc supply voltage Available with two or three normally open (NO) safety outputs, depending on model Features model with one normally closed (NC) non-safety auxiliary output Includes removable terminal blocks Responds in 20 milliseconds Uses two green LEDs to indicate the output status of internal relays K1 and K2 Rated IEC IP20 NEMA 1
