Piezo switch SML3

single-polewaterproofIEC

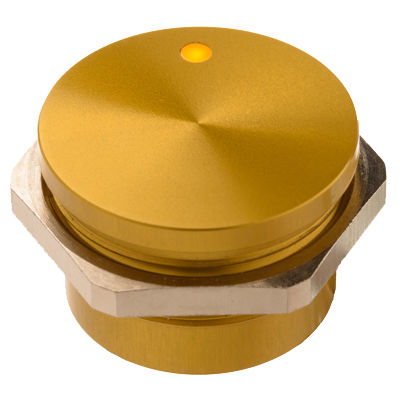

Touch Metal Piezo Switch, 28.5mm mounting diameter, PG-21 thread, 30mm flat actuation area, point illuminated with single or bi-color LEDs (5, 12 or 24V). Metal housings are milled, one piece construction and mounted with a nut. Aluminum housings are available in Silver, Red, Black, Green, Gold or Blue anodization. •MIL-STD – 810C, 202E, 461B, 462 •CE – EVERSWITCH products comply with Directives •2006/95/EEC for low voltage components. •IP Rating – IP69K Compatible with IEC 60529; EN 60529 •EMC: Directive 2004/108/EWG •Proven Reliability: Tested for 50,000,000 cycles •Weatherproof: Used in harshest outdoor conditions •Touch Activated: Operable with gloves, tools, etc. •Sterilizable: Wash down proof up to 100 BAR •Vandal Resistant: Used in high traffic and abusive areas •Zero power required for keypad operation •Mimics a dry contact switch closure •Eliminates RFI, EMI and ESD issues •Five year warranty •Housing Materials – Aluminum 6061 T651 or Stainless Steel (303/304) •Actuating Force – 3-5 Newton •Connection – 2×22 guage wires •Actuating Travel – 0.002 mm •Shock Protection – IK 06 •Fastening Torque – 2.5 Nm
