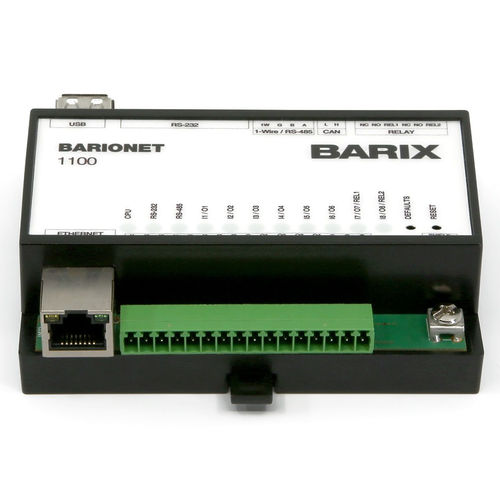

Digital I O module BARIONET 1100

analogEthernetUSB

Universal, programmable I/O device server Barionet 1100 is the newest fully programmable I/O device server of Barix, based on Linux/Lede/OpenWRT. The device features a wide range of interfaces such as two USB, WiFi, serial ports, analog and digital I/Os, Relays, Dallas 1-wire support and optional CAN and LoRa Interface. It is IPv4 or IPv6 capable. Supporting SNMP, Modbus and universal ASCII protocols, the Barionet device can be easily integrated into 3rd party management systems. Barix Products are developed in Switzerland and manufactured in the EU. • Embedded Linux / Lede / OpenWRT • Programmable in C++, Lua or Python • IPv4 / IPv6 stack • One 10/100 Ethernet port • Wi-Fi 802.11 b/g/n, 2.4Ghz • 2 Relay outputs • 4 Digital Outputs • 4 Digital Inputs • 4 Universal Inputs (analog or digital) • RS232 Interface • RS485 Interface • 2 USB Host Interfaces • Interface for temperature sensor – Dallas 1-wire® 18DS20 • Optional CAN Interface • Optional LoRa Interface • Barionet DIN-Rail Case • Supply Voltage 9-30 VDC
