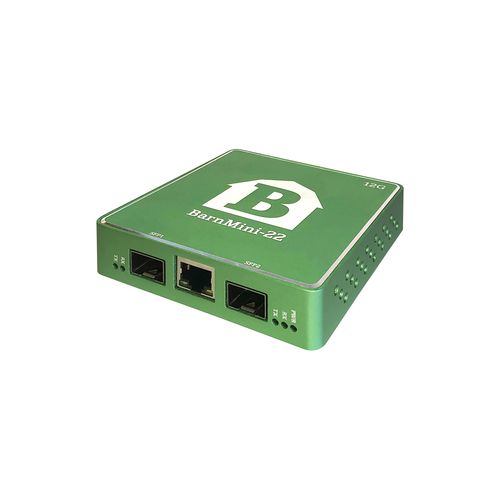

Signal converter BarnMini-22

protocolEthernetASi

A protocol agnostic SFP+ to SFP+ converter. BarnMini-22 is equipped with a control port for reclcockers and monitoring of SFP diagnostics. Supporting data rates up to 12Gbit/s, the state of the art reclockers handle SDI up to 12G, 10G Ethernet as well as 125Mbit/s MADI. As any BarnMini module it is available as a standalone unit with a separate PSU or mounted into the BarnMini BTF-Mini-16 frame that houses any combination of 16 x BarnMini modules with a common PSU. Optical ports 2x SFP+ port (small formfactor pluggable) for transceivers, MSA compliant and non-MSA compliant, up to 12Gbps SMPTE 259M, 292M, 372M, 424M, 372M, ST-2081, ST-2082, DVB-ASI, AES10 (MADI), AES3, IEEE 802.3ae Multirate reclocking of outputs 100Mbps – 12Gbps SFP modules are hot pluggable/swappable Single-mode, multi-mode or media-converter SFP modules Control port 1x RJ45 connector 10/100 Mbps Ethernet Power supply 12-24V DC, power supply included Redundant power supply available with BTF-Mini-16 Physical size 92mm x 98mm x 22mm 200g
