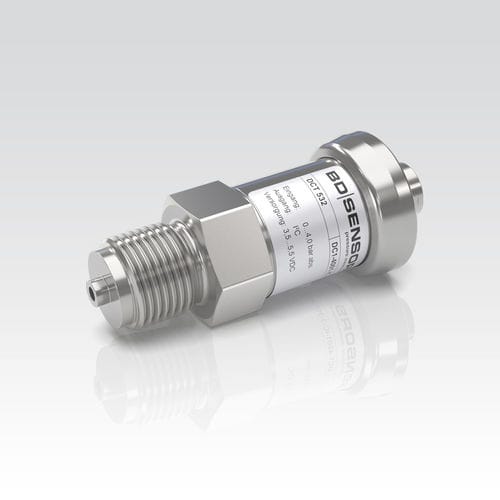

Relative pressure transmitter DCT 532
absolutevacuummembrane

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
membrane, piezoresistive
Output
digital
Mounting
threaded, flush diaphragm
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged, IP67, IP68
Other characteristics
CE, compact, temperature-compensated, smart, low pressure, custom, fast response time, RoHS, with selectable measurement range, multifunction, with integrated amplifier
Pressure range

Max.: 400 bar
(5,801.51 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -25 °C
(-13 °F)

Description

Contrary to the industrial pressure transmitter with analog signal, DCT 532 has a digital i²C-interface. i²C has a master-slave topology, whereby you can use up to 127 devices at one master. Due to the usage of high quality materials and components, DCT 532 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L. The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 532 to different conditions on-site. Features: - nominal pressure: 0 ... 100 mbar bis 0 ... 400 bar - accuracy: 0.25% FSO - output signal: digital i²C - bus frequency max. 400 kHz - configuration of data format - interrupt signal - perfect thermal behaviour - excellent long term stability Optional Features: - pressure port G 1/2" flush from 100 mbar - pressure sensor welded - customer specific versions
