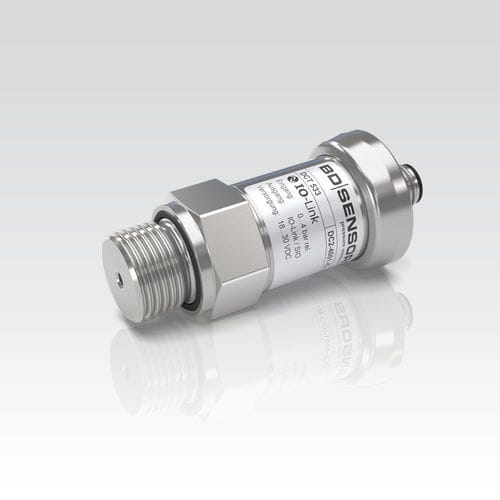

Relative pressure transmitter DCT 533absolutevacuummembrane
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, absolute, vacuum
- Technology
- membrane, piezoresistive
- Output
- IO-Link, IoT
- Mounting
- threaded
- Fluid
- for gas, for liquids
- Material
- stainless steel
- Protection level
- rugged, EMC, corrosion-resistant, IP67
- Applications
- for OEM, for HVAC systems, for building automation, for water treatment, for refrigeration circuits, for engines
- Other characteristics
- fast response time, compact, CE, with amplified output, temperature-compensated, smart, low pressure, custom, programmable, RoHS, with selectable measurement range, oil-filled, multifunction, with integrated amplifier, silicone oil-filled
- Pressure range
Max.: 400 bar
(5,801.51 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 125 °C
(257 °F)Min.: -40 °C
(-40 °F)
Description
The sensor technology of the DCT 533 is the same as those of the proven pressure transmitter DMP 331 / DMP 333, whereby the DCT 533 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L.
The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 533 to different conditions on-site.
Features:
- nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar
- accuracy: 0,35 % (opt. 0,25%) FSO
- IO-Link according to specification V 1.1
- Data transfer 38.4 kBaud
- Smart sensor profile
- perfect thermal behaviour
- excellent long term stability
Optional Features:
- pressure port G 1/2" flush from 100 mbar
- pressure sensor welded
- customer specific versions
Catalogs
data sheet DCT 533
4 Pages
datasheet DCT 533P
4 Pages
