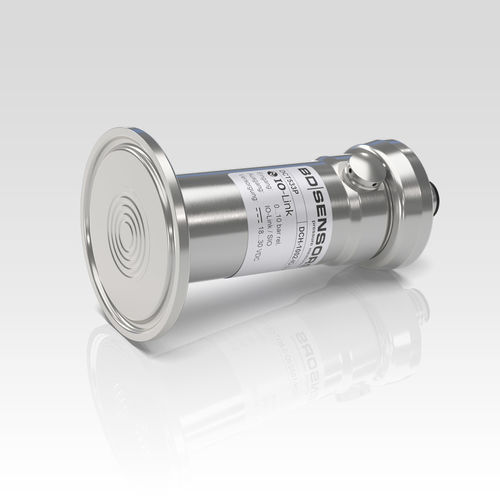

Relative pressure transmitter DCT 533Pabsolutevacuummembrane
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, absolute, vacuum
- Technology
- membrane
- Output
- IO-Link
- Mounting
- threaded, flush diaphragm, flange
- Fluid
- for oil, for fuel
- Protection level
- IP67, IP69
- Other characteristics
- programmable, precision, CE, temperature-compensated, smart, custom-made, digitally compensated, RoHS, high-temperature, oil-filled, with diaphragm seal, silicone oil-filled
- Pressure range
Min.: 0.1 bar
(1.45 psi)Max.: 40 bar
(580.15 psi)- Precision
0.25 %
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 200 °C
(392 °F)
Description
The DCT 533P is suitable for food / beverage and pharmaceutical industry as well as, for applications where a totally flush pressure port is required. The special design prevents condensation inside the pressure transmitter and thus a failure in applications with large temperature changes.
The integrated, standardised IO-Link interface increases productivity and supports the operator in service and maintenance. Properties can be read and qualified via IO-Link, which helps the user to assess the state of system or process.
Features:
- IO-Link acc. to specification V 1.1
- Data transfer 38.4 kBaud
- Smart sensor profile
- hygenic version
- CIP / SIP cleaning up to 150 °C
- diaphragm with low surface roughness
Optional Features:
- cooling element for media temp. up to 300 °C
- different process connections
