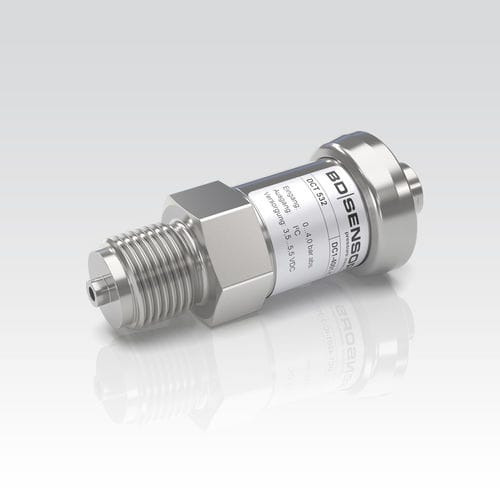

Relative pressure transmitter DCT 531
absolutevacuummembrane

relative pressure transmitter
relative pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
relative, absolute, vacuum
Technology
membrane, piezoresistive
Output
RS-485, Modbus
Mounting
threaded
Fluid
for gas, for liquids
Material
stainless steel
Protection level
rugged
Other characteristics
custom, compact, CE, temperature-compensated, smart, with amplified output, low pressure, OEM, fast response time, programmable, RoHS, with selectable measurement range, multifunction, with integrated amplifier
Pressure range

Max.: 400 bar
(5,801.51 psi)

Min.: 0 bar
(0 psi)

Process temperature

Max.: 125 °C
(257 °F)

Min.: -25 °C
(-13 °F)

Description

DCT 531 with RS485 interface uses the communication protocol Modbus RTU which has found the way in industrial communication as an open protocol. The Modbus protocol is based on a master Slave architecture with which up to 247 Slaves can be questioned by a master – the data will transfer in binary form. Due to the usage of high quality materials and components, DCT 531 is suitable for almost every industrial application, if medium is compatible with stainless steel 316L. The modular concept of the pressure transmitter allows customized electrical or mechanical connections, so it is easy to adapt the DCT 531 to different conditions on-site. Features: - nominal pressure: 0 ... 100 mbar up to 0 ... 400 bar - accuracy: 0.25% FSO - perfect thermal behaviour - excellent long term stability Optional Features: - pressure port G 1/2" flush from 100 mbar - pressure sensor welded - customer specific versions
