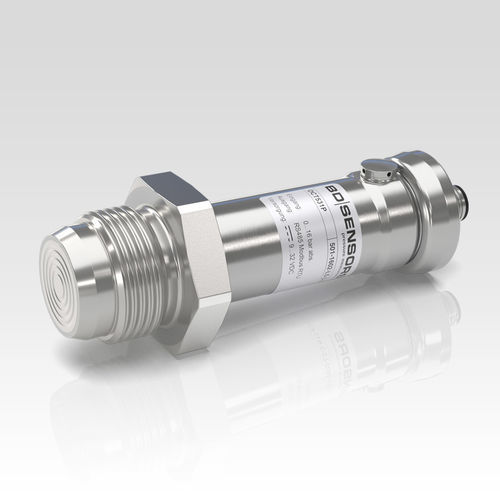

Relative pressure transmitter DCT 531Pabsolutevacuummembrane
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative, absolute, vacuum
- Technology
- membrane
- Output
- Modbus RTU
- Mounting
- threaded
- Material
- stainless steel
- Protection level
- IP67
- Other characteristics
- precision, compact, CE, temperature-compensated, custom-made, programmable, RoHS, high-temperature, digitally compensated, silicone oil-filled, with selectable measurement range, oil-filled
- Pressure range
Max.: 40 bar
(580.15 psi)Min.: 0.1 bar
(1.45 psi)- Process temperature
Max.: 200 °C
(392 °F)Min.: -40 °C
(-40 °F)
Description
The pressure transmitter DCT 531P was designed for use in the food / beverage and pharmaceutical industry. The compact design with hygienic versions guarantees an outstanding performance in terms of accuracy, thermal behaviour and long term stability.
The integrated RS485 interface is characterized by a robust and reliable data transmission that works failure-free even over long distances.
Additionally, the modular construction concept of the device allows to combine different electrical and mechanical connections, so it is easy to adapt the pressure transmitter to different conditions on-site.
- accuracy: 0.25% FSO
- output signal: RS485 with Modbus RTU protocol
- CIP / SIP cleaning up to 150 °C
- diaphragm with low surface roughness
- reset function
Optional Features:
- different process connections
- cooling element for media temperatures up to 300 °C
Catalogs
datasheet DCT 531P
5 Pages
