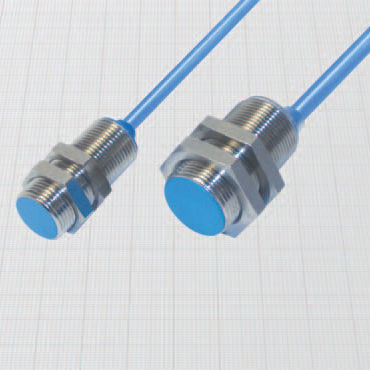

Inductive proximity sensor DC14-18 series
cylindricalNAMURIP67

inductive proximity sensor
inductive proximity sensor
Add to favorites
Compare this product


Characteristics

Technology
inductive
Shape
cylindrical
Output signal
NAMUR
Protection level
IP67
Measuring range

3 mm, 4 mm, 5 mm, 5.5 mm, 8 mm
(0.12 in, 0.16 in, 0.2 in, 0.22 in, 0.31 in)

Description

• NAMUR SERIES - diameters 14 - 16 - 18 mm • Non amplified in d.c. 2 wires • Cable output Technical data: • Working voltage: 5 ÷ 30 Vdc • Supply voltage according to NAMUR: 7,7 ÷ 9 Vdc • Max ripple: 10% • Consumption at 8,2 V with Rx = 1000 Ω with metal: ≤ 1 mA without metal: ≥ 3 mA • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Degree of protection: IP67 • Cable conductor cross section: 0,35 mm2 on 14 ÷ 16 mm 0,50 mm2 on 18 mm • According to EN60947-5-6 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 • For certified ATEX version see ATEX Catalogue Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing: nickel plated brass • Sensing face: plastic
