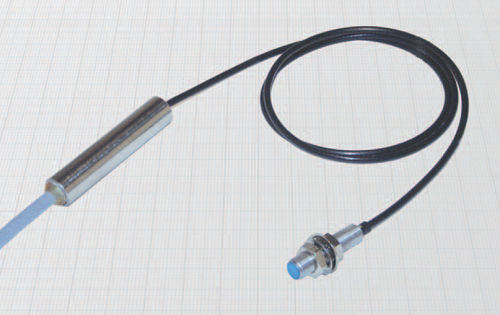

Inductive proximity sensor IPS05/4608KS

cylindricalIP67with amplified output

• Amplified in d.c. 3 wires • High precision • Switching hysteresis < 1 μm • Cable output General Features: This unique sensor enables the detection of metallic targets with extremely high precision without contact. By using an implemented software algorithm and a laser working process it has a very stable and precise switching point with a hysteresis lower than 1 µm. Applications: • Semiconductors industry • Quality control instruments • High precision mechanical devices • Calibration equipments Technical data: • Supply voltage (UB): 5 ÷ 13 Vdc • Consumption: ≤ 10 mA • Voltage drop (Io =10 mA): ≤ 0.5 V • Voltage drop (Io =100 mA): ≤ 1 V • Output polarity: NPN open collector • Output logic: normally open • Repeat accuracy (R): < ± 2 µm • Switch hysteresis (H): < 1 µm • Temperature range: 10 ÷ 40°C • Degree of protection: IP67 • Cable conductor cross section: 0,22 mm2 • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C • Housing sensor and amplifier: stainless steel
