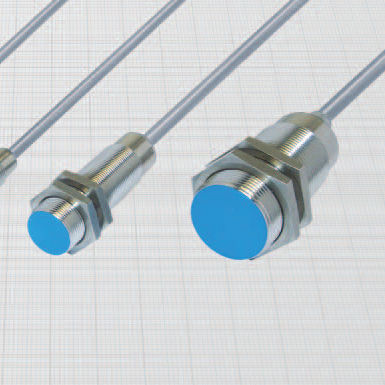

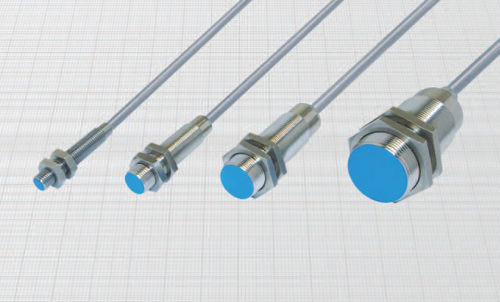

Inductive proximity sensor DCM12-30...S series

cylindricalIP67with amplified output

Non polarized • Amplified in d.c. 2 wires • Cable output • General Features: These sensors are not polarized and the load can be connected on both positive and negative lead (function PNP or NPN). So they can replace traditional mechanical microswitches in many applications. Technical data: • Supply voltage (UB): 10 ÷ 55 Vdc • Max ripple: 10% • Off-state current (Ir ): ≤ 1 mA • Minimum operational current (Im): 5 mA • Voltage drop (Ud) with Ie = 10 mA: ≤ 5 V • Voltage drop (Ud) with Ie = 100 mA: ≤ 6 V • Temperature range: - 25° ÷ + 70°C • Max thermal drift of sensing distance Sr : ± 10% • Repeat accuracy (R): 2% • Switching hysteresis (H): 10% • Degree of protection: IP67 • Switch status indicator: yellow LED • Cable conductor cross section: 0,34 mm2 on 8 and 12 mm 0,50 mm2 on 18 mm 0,75 mm2 on 30 mm • Protected against short-circuit and overload (versions with letter K) • Suppression of initial false impulse • Electromagnetic compatibility (EMC) according to EN60947-5-2 • Shock and vibration resistance according to EN60068-2-27 EN60068-2-6 Materials: • Cable: 2 m PVC CEI 20 - 22 II; 90°C; 300 V; O.R. • Housing 8 mm: stainless steel • Housing 12-18-30 mm: nickel plated brass • Sensing face: plastic PBT
