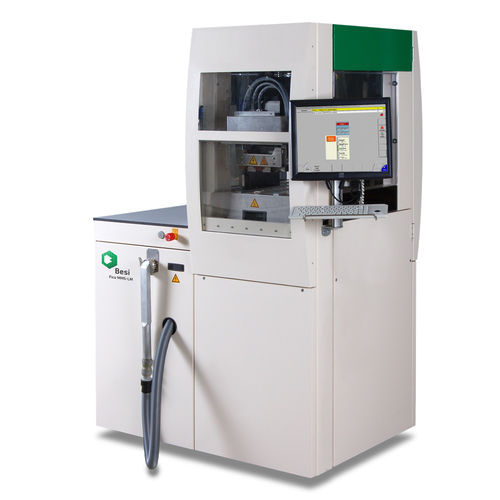

Carousel type molding machine Fico MMS-LM

automatic

The Fico MMS-LM is a molding system for single sided products in MAP, such as BGA, QFN etc. The machine was especially developed for molding process parameter optimization. By making use of the original molds, new products can be developed and optimized prior to large scale production. Besides that, the Fico MMS-LM can be used for small production batches or offline cleaning of the molds that are used in the Fico AMS-LM. Compatible The user friendliness of the Fico MMS-LM creates the opportunity to quickly introduce new products by making use of test molds. As on the automatic version, the Fico MMS-LM can be used with V-pin molds. Especially in combination with high vacuum, V-pins allow full control of the cavity vacuum. Key Features - Top edge molding - 45 ton press station - Cavity vacuum control - Board vacuum - Adaptive clamping - Transfer pressure control - Dynamic clamping control Specifications Machine Dimensions Width: 1,210 mm Depth: 1,020 mm Height: 2,012 mm Weight: Approx. 850 kg Leadframe Dimensions Width: 65 - 102 mm Length: 100 - 280 mm Thickness: 0.1 - 1.5 mm Height: Max. 2 mm Supply Requirements Voltage: 208-230-380-400-440-460-480VAC - 3~ Frequency: 50 / 60 Hz Power rating: 7.5 kVA Compressed air: 5 - 10 bar Average air consumption: 1.5 m3/h at 6 bar Factory exhaust: 300 m3/h at 50 Hz
