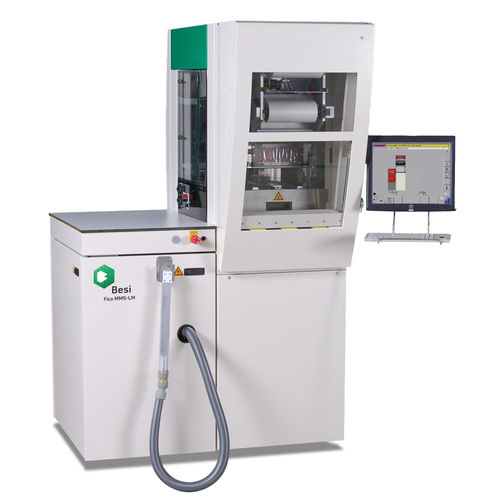

Carousel type molding machine Fico MMS-LM Top Foil

automaticadjustable

The Fico MMS-LM for top foil is the manual version of the AMS-LM, automatic molding system. It can be used for single sided products in MAP, such as BGA or QFN. Top foil allows bleed free production of bare die products. A special foil, guided over the top mold, creates a soft sealing layer between the top mold and the products which eliminates an extra cleaning process step after molding. Key Features - Top edge molding - 45 tons press station - Cavity vacuum control - Board vacuum - Dynamic clamping control - Transfer pressure control - Dynamic climate control - Easy mold exchange - Built in vacuum cleaning - Completely compatible with the AMS-LM Specifications Machine Dimensions Width: 1,210 mm Depth: 1,020 mm Height: 2,012 mm Weight: Approx. 850 kg Leadframe Dimensions Width: 55 - 102 mm Length: 100 - 280 mm Thickness: 0.1 - 1.5 mm Height: Max. 2 mm Supply Requirements Voltage: 208-230-380-400-440-460-480VAC - 3~ Frequency: 50 / 60 Hz Power rating: 7.5 kVA Compressed air: 5 - 10 bar Average air consumption: 1.5 m3/h at 6 bar Factory exhaust: 300 m3/h at 50 Hz
