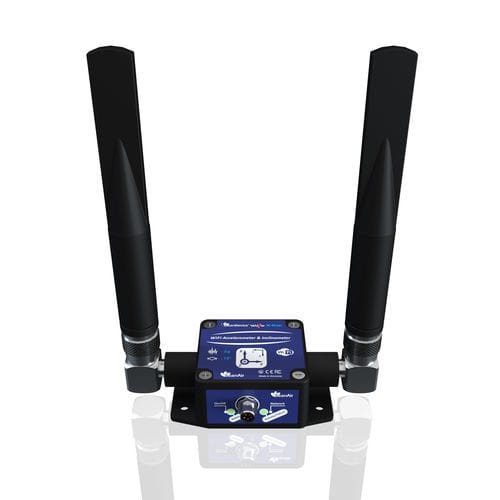

MEMS vibration sensor BeanDevice® Wilow® X-INC HG

for machine monitoringfor machine condition monitoringfor harsh conditions

Product Overview: The BeanDevice® Wilow® X-INC is an ultra-low-power (ULP) Wi-Fi combo sensor designed for simultaneous, high-precision vibration and tilt monitoring. This all-in-one device integrates a high-performance tri-axis accelerometer and a bi-axis inclinometer (±15° or ±30°). It features an integrated data logger for reliable performance in demanding IoT applications, versatile mounting (screw or magnetic), and antenna configurations. Solar energy harvesting enables autonomous, maintenance-free operation, making it ideal for structural and industrial monitoring. Key Features: - High-performance combo sensor: Tri-axis accelerometer (very low noise: 45 µg/√Hz for ±2g version) and inclinometer (repeatability ±0.003° for ±15B version, range ±15° or ±30°). - Ultra-low-power WiFi connectivity: Compatible with standard WiFi access points, up to 200 meters range (high-gain antenna, line-of-sight), exceptional power efficiency. - MQTT protocol support: Seamless integration with IoT ecosystems for efficient, low-latency data communication. - Rugged & compact design: IP67/NEMA 6 waterproof, lightweight aluminum housing (65 × 59 × 35 mm, 220 g). - Ultra-low power consumption: 0.3 mA in battery-saver mode, integrated data logger supports up to 772,900 logs per sensor channel (streaming mode). - Energy harvesting ready (EHR option): Direct solar panel compatibility (8–24 VDC) for maintenance-free, autonomous deployments. Antenna Options: - Radome Antenna: Ideal for space-constrained applications. - High-Gain Antenna: Optimized for long-range wireless communication. Wireless range can be expanded using third-party WiFi repeaters. Powering Options: - USB 5VDC Power Supply: Compatible with any IoT-dedicated USB power bank. - Solar Panel Connectivity: Direct connection for renewable energy (EHR option). - Integrated Rechargeable Battery: Built-in 900mAh battery for continuous operation. Sensor Capabilities: - Tri-axis accelerometer (±2g or ±10g), very low noise operation. - Bi-axis inclinometer (±15° or ±30°), high repeatability and resolution (0.001°). - Smart energy management: USB, solar, or internal battery. - Store and Forward+: Lossless data transmission for large-scale industrial deployments. Software & Analysis: - BeanScape® Wilow® (Premium/RA): Real-time vibration and velocity display, advanced vibration analysis (FFT, PPV), amplitude measurement, automatic FFT and PPV reports (DIN4150-3), alarm generation by email. - MQTT integration for scalable IoT applications. Technical Specifications: - Accelerometer: MEMS, ±2g or ±10g, 45 µg/√Hz (±2g), 100 µg/√Hz (±10g), 2 kSPS per axis, 24-bit delta-sigma ADC, DC to 800 Hz frequency response. - Inclinometer: MEMS, ±15° or ±30°, 0.001° resolution, ±0.003° repeatability (±15B), DC to 28 Hz frequency response. - Mechanical: Aluminum casing, 65x59x35 mm, 220g, IP67/NEMA 6, shock resistance 100g/50 ms, -40°C to +65°C operating temperature, 90% RH max humidity. - Wireless: IEEE 802.11 b/g/n (2.4GHz), up to 200m range (high-gain antenna), MQTT protocol, OTA firmware upgrade. - Power: 900mAh Li-ion battery, USB 5V, optional 8-24VDC (solar compatible), integrated charger. - Data Logger: Up to 460,000 logs per sensor channel (streaming mode), wireless data download in 3 minutes (full memory). - Certifications: CE, FCC, ARIB STD-T66, ROHS, IP67/NEMA 6. Included Accessories: - M8 plastic cap (1pcs, REF: WL-PC) - M8 to USB cable (1pcs, 2m, REF: WL-CBL-M8-6P-USB-2M) - Magnet for power on/off (1pcs, REF: WL-MGN) - Wall mounting kit (4pcs M5 screws + locknut, REF: WL-WIFI-SCMKIT) Optional Accessories: - Solar panel kits, molded cables, mechanical mounting options (magnetic, 90° bracket), AC/DC power adapter, IP67 suitcase, calibration certificate. Applications: - Bridge monitoring - Water pump monitoring - Automotive testing - Construction site monitoring - Windmill monitoring - Ground vibration monitoring
