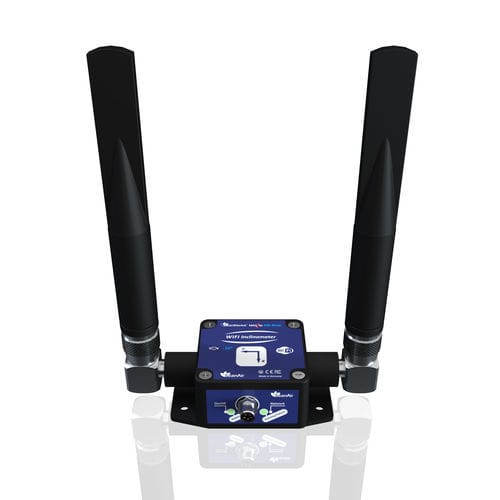

2-axis inclinometer BeanDevice® Wilow® HI-INC -HG

digitalwirelessIoT

Product Overview: The BeanDevice® Wilow® HI-INC is an ultra-low-power (ULP), bi-axis Wi-Fi inclinometer engineered for high-precision tilt monitoring. It is available in two measurement ranges (±15° or ±30°) and features an integrated data logger to ensure reliable performance in demanding IoT applications. This robust sensor offers versatile mounting (screw or magnetic) and antenna configurations (embedded or high-gain) to suit various deployment needs. With solar energy harvesting capabilities, the WiLow® HI-INC enables autonomous, maintenance-free operation, making it the ideal solution for continuous structural and industrial tilt monitoring. Key Features: - High-Performance Sensing: High-precision inclinometer with built-in data logger, available in ±15° or ±30° measurement ranges. - Ultra-Low-Power WiFi Connectivity: Compatible with standard WiFi access points, ULP WiFi transmission up to 200 meters (with high-gain antenna, line-of-sight), exceptional power efficiency for continuous operation. - MQTT Protocol Support: Seamless integration with IoT ecosystems for efficient, low-latency data communication. - Rugged & Compact Design: IP67/NEMA 6 waterproof rating, lightweight aluminum housing (65 × 59 × 35 mm, 220 g – Radome antenna version). - Ultra-Low Power Consumption: 0.3 mA in battery-saver mode, integrated data logger supports up to 772,900 logs per sensor channel (streaming mode). - Energy Harvesting Ready (EHR Option): Direct solar panel compatibility (8–24 VDC), enabling maintenance-free, autonomous deployments. Antenna Options: - Radome Antenna: Ideal for space-constrained applications. - High-Gain Antenna: Optimized for long-range wireless communication. Wireless range can be expanded using third-party WiFi repeaters. Powering Options: - USB 5VDC Power Supply: Compatible with any IOT-dedicated USB power bank. - Solar Panel Connectivity: Direct connection for renewable energy source (EHR option). - Integrated Rechargeable Battery: Built-in 900mAh rechargeable battery. Applications: - Antenna Base Station Tilt Monitoring - Bridge Monitoring - Railway Monitoring - Construction Site Monitoring - Crane Monitoring
