Production automation system Karakuri

What is (a) Karakuri?
The term Karakuri originates from Japan and denotes a form of lean automation that uses mechanical principles and gravity alone to handle load carriers (e.g. boxes or small totes). Karakuri follows the lean philosophy of leveraging passive resources (gravity, the dead weight of a load) and applying simple mechanics to achieve low-cost automation. It is closely aligned with Kaizen — continuous improvement of existing processes in production and warehousing environments.

Key advantages / Good reasons for a Karakuri

• Gravity instead of high-tech: handling of load carriers relies on basic physical principles.
• Low Cost Automation: low investment, often requiring no electricity, sensors or complex control systems.
• Quick implementation: new and retrofit solutions are easy and fast to implement and adapt.

Examples of Karakuri solutions

• Rocker: Mechanism for efficient, ergonomic supply and return of boxes, including separation so following boxes are held back. Used at workstations or assembly stations with high throughput; inclined roller tracks enable ergonomic gripping and return without lifting out of the track.
• Shooter / Transfer unit: Push-release mechanism for controlled transfer. Useful for automatic handover with mobile robots (AMRs/AGVs) or for flow/FIFO racks; can be configured to release one box or all boxes depending on separation elements.
• Lift for load carrier (bracket mechanism): Bridges height differences in workstations or logistics processes to ensure ergonomic handling; often combined with rocker solutions to pass boxes onto declined tracks.
• Lift for load carrier (crank handle mechanism): Manual crank lift for ergonomic height adaptation, often combined with rocker elements for transfer to inclined tracks.
• Separation mechanism for load carrier: Ensures only one load carrier passes — critical where downstream systems (AMRs/AGVs or stations) accept a single box.
• Rotation mechanism: Executes turning movements for corner solutions or redirects load carriers; used for rotating tabletops or rack solutions where reorientation saves space or improves ergonomics.

Components and typical elements

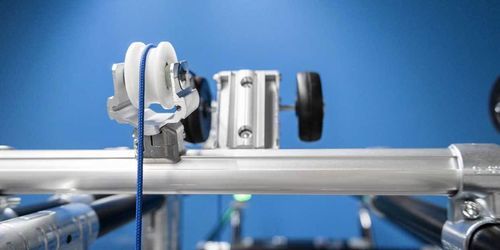

Modular steel and aluminium pipe racking systems and aluminium square profiles provide a robust basis for Karakuri. Roller tracks transport load carriers on slight inclines. Other elements include rockers, levers, ropes, springs, pulleys and mechanical locks depending on the application.

Usage notes
Karakuri solutions are primarily designed for automatic lifting, lowering, redirecting or returning of load carriers. The weight of the load carrier is a decisive parameter for mechanical Karakuri functions. Typical applications include workstations, assembly stations, flow racks and areas requiring low-maintenance, low-cost automation.

Characteristics / technical specifications

• Principle: mechanical and gravity-driven (no or minimal electrical components).
• Primary functions: automatic handling (lifting, lowering, redirecting, separation, rotation, transfer) of boxes/load carriers.
• Typical elements: modular pipe racking, aluminium square profiles, roller tracks, rockers, levers, ropes, pulleys, springs, mechanical bolts.
• Benefits: low investment, low maintenance, quick implementation, improved ergonomics, reduced need for sensors/control.
• Common use-cases: workstation supply/return, flow/FIFO racks, integration with AMRs/AGVs for single-box transfer.
• Design support: solutions can be planned with 3D tools and implemented from modular components; configurations adapted to load weight and required motion.
