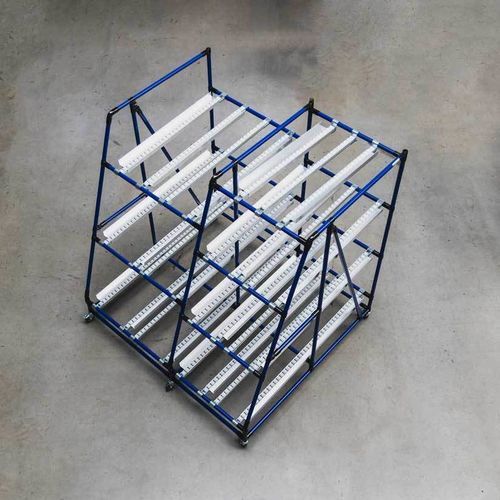

Aluminium storage rack

steel

Product overview Flow racks are rack and storage systems that move load carriers by means of gravity and ensure the FIFO principle (first-in, first-out). Inclined roller tracks allow the next unit in a rack compartment to move forward automatically. With flow racks, crates, KLT boxes or cartons are stored from one side and removed from the other, offering a highly efficient material flow and ergonomic loading and picking.

Various versions

• Standard flow racks
• Corner solutions
• Shooter solutions (front-drive and side-drive)
• Rocker solutions (for return of empty containers)

Components Our flow racks are constructed from a modular pipe racking system to ensure strength, flexibility and cost efficiency. Core components include inclined roller tracks (gravity-fed), reinforced base frames (round pipe or square profile combinations), brake plates for steep lanes, side guides and optional castors for mobility. Additional modular accessories are available to meet specific requirements. Specialized functions described include rocker mechanisms for easy return of empty small load carriers and shooter mechanisms for automatic transfer between transport medium and transfer station.

Benefits

• Efficient, space-saving storage of boxes and cartons while keeping short pick distances
• Automatic material flow that guarantees FIFO
• Two-sided access for uninterrupted picking and replenishment
• Modular and flexible design allowing adaptation of number of levels, compartment heights and roller specification depending on load carrier type, weight and throughput

Design & planning The modular system enables individual adaptations to production and warehouse layouts. A 3D planning tool is available for designing individual configurations and selecting components for the planned solution.

caractéristiques / spécifications techniques

• Principle: gravity-fed flow (FIFO)
• Suitable load carriers: crates, KLT boxes, cartons (customizable)
• Structure: modular pipe racking system (round steel pipes and/or square pipe profiles in steel or aluminium)
• Tracks: inclined roller tracks; brake plates available for steep lanes
• Functions: shooter (front and side drive), rocker for empty-container return, optional Karakuri function
• Mobility: optional castors for flexible, mobile racks
• Access: two-sided (load from one side, remove from the other)
• Customization: number of levels, track width/rollers and compartment heights adapted to material, weight and throughput
• Use cases: lean production supermarkets, workstation material supply, warehouse storage
