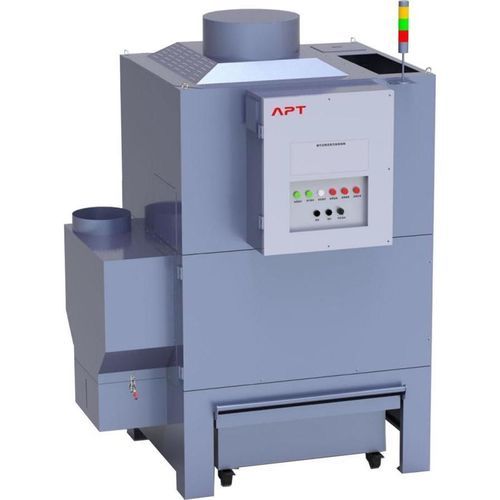

Cartridge dust collector NIP

pulse-jet backflowfor cutting machinesmodular

Product Introduction The NIP Series High-Flow Intelligent Dust Collector is primarily designed for high-power laser cutting and welding processing applications. It effectively collects and filters dust generated during processing. Developed based on the company's original IP series dust collector, the NIP Series features optimized performance and improved structure for superior efficiency and greater ease of use. The system mainly consists of a blower power unit, cartridge filter unit, reverse pulse cleaning unit, intelligent control unit, and air intake spark arrestor unit. Purification Principle The intelligent control system regulates fan operation. The negative pressure and airflow generated by the medium-pressure fan draw fine dust produced during laser processing into the dust collector through extraction ducting. The air undergoes filtration and purification via the pre-installed spark arrestor unit and cartridge filter unit, with clean air finally discharged indoors. Product Features - High-flow dust collector specifically designed for laser cutting and metal welding (excluding non-ferrous metals) applications. - Intelligent control system interfaces with laser equipment for energy savings. - Intelligent reverse pulse cleaning mode with reduced-speed cleaning during standby for lower resistance and more thorough cartridge cleaning. Real-time temperature monitoring with automatic alarm and shutdown on abnormalities to reduce fire and explosion risks. - Real-time dust concentration monitoring with automatic alarm and shutdown on abnormalities, minimizing environmental impact from cartridge damage. - Large-capacity mobile dust bin design reduces maintenance frequency and improves operational efficiency. - Modular design allows customization of air inlet size and function. - Humanized ergonomic design for more convenient operation. - Multiple fool-proof designs ensure safer and more convenient use. - Quick-lock cartridge installation enables fast and easy cartridge replacement. Key Components - Wind turbine silos - Air Inlet - Three-color Indicator Light - Air Outlet - Control Panel - Filter Cartridge Silo - Dust Hopper Additional Functionalities - Filter Cartridge Damage Alert - Intelligent Dust Cleaning - One Dust Collector Linked with One Laser Cutting Machine Caractéristiques / Spécifications techniques - Product Name: High Flow Intelligent Dust Collector - Series: NIP Series - Application: High-power laser cutting and welding (metal, not non-ferrous metals) - Key Units: Blower power unit, cartridge filter unit, reverse pulse cleaning unit, intelligent control unit, air intake spark arrestor unit - Control: Intelligent system with real-time monitoring and alarms - Cleaning: Reverse pulse cleaning, quick-lock cartridge installation - Design: Modular, ergonomic, large-capacity dust bin - Safety: Multiple fool-proof designs, temperature and dust concentration alarms
