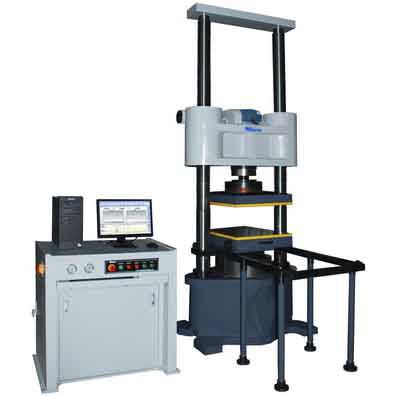

Microcomputer Control Compression Testing Machine with Hydraulic Servo
-Hydraulic system is upgraded with a speed withdraw unit to promote testing efficiency.
-The product is born with a refined structure that enables more steady loads and precise controls. It adopts the leading high-performance AEC-1000 Controller, which is usually equipped on high-end material testing machines. The mechanical components collaborate with the pioneered modular Test Live computer testing software to ensure the stability, precision and reliability of the whole system.
-This product complies with the standards and requirements of GB/T 16825.1-2008, GB/T50081-2002, GB/T 2611-2007.
-The YAW series of microchip controlled automatic compression testing machine is mainly designed for compression under its rated loading capability. It features a bottom-mounted hydraulic cylinder, electrically adjustable test space, applicable to fields including construction, construction materials, road, bridge, higher education, mining, quality control department, Metrology and etc. to perform compression tests on metal, non-metal, jack, rubber base, concrete, cement, high-strength concrete and other materials to inspect their mechanics performances.
-This product comprises a mainframe, a servo hydraulic system, a servo controller and the computer system. The height of the compression space can be adjusted by electromechanically moving the crossbeam. The upper compression platen is integrated with a spherical seat to align itself automatically. The hydraulic cylinder is integrated with the leading composite-sealing technology, featuring characteristics including low friction, no leaking, etc.
