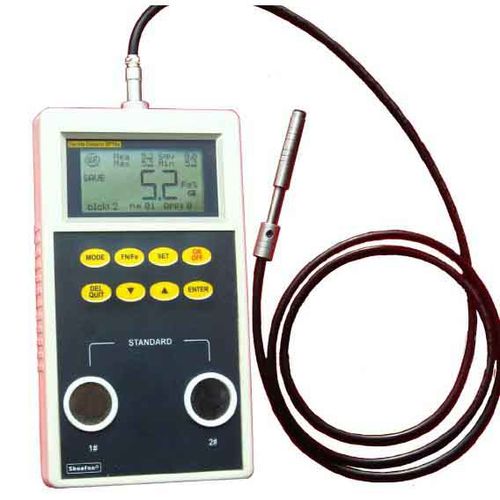

Ferrite content measuring instrument SP10a
electronicdigitalfor pipe

ferrite content measuring instrument
ferrite content measuring instrument
Add to favorites
Compare this product


Characteristics

Measured value
ferrite content
Technology
electronic, digital
Applications
for pipe
Configuration
portable

Description

● LCD-display, ● Two display modes (SAVE and FREE). ● Two units — Fe% and FN (WRC number). ● Statistics display together with measurements. ● Built-in Rs-232 interface for printer(Option if need) Application In the chemical industry the stress-bearing members of containers,pipes,reactor vessels and other plant are usually made of austenitic steel or duplex steel or cladding of austenitic chromium-nickel steel.The residual ferrite content must be within a specific range compatible with the mechanical strength requirements or the item concerned.The SP10 was developed to facilitate accurate ferrite content measurements on welded seams and cladding items. It gives results that match for the standards of GB/T1954-2008、ISO 8249 and ANSI/AWSA4.2.
