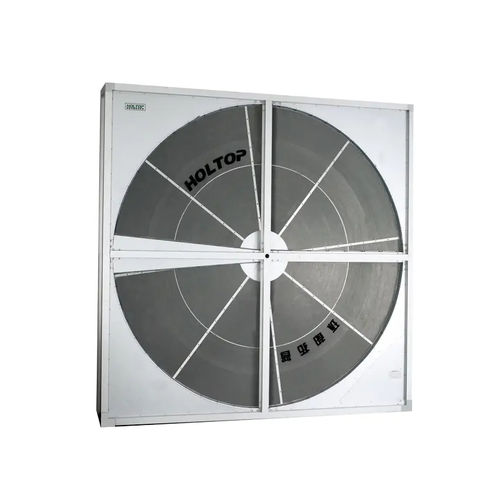

Plate heat exchanger HRT series

rotaryair/airaluminum

Enthalpy and sensible heat recovery Heat efficiency up to 70% to 90% Double sealing system Double purge sector 1. High efficiency of sensible heat recovery 2. Double labyrinth sealing system ensures minimal air leakage. 3. Self-cleaning efforts prolong service cycle, reducing maintenance cost. 4. Double purge sector minimizes carryover from exhaust air into supply air stream. 5. Life-time-lubricated bearing requires no maintenance under normal usage. 6. Interior spokes are used to mechanically bond the rotor's laminations to reinforce the wheel. 7. Completed range of rotor diameter from 500mm to 5000mm, rotor can be cut into 1pc to 24pcs for easy transportation, various types of housing construction is available as well. 8. Selection software for convenient selection. Rotary heat exchanger is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to 70% to 90% The total heat wheel is made by aluminum foils coated with 3A molecular sieve of 0.04mm thickness. Rotary heat exchanger can built in air handling unit (AHU) as a main part of the heat recovery section. Usually side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU. It can also be installed in the ducts of ventilation system as a main part of the heat recovery section, connected by flange. In this case, side panel of the exchanger is necessary to prevent leakage.
