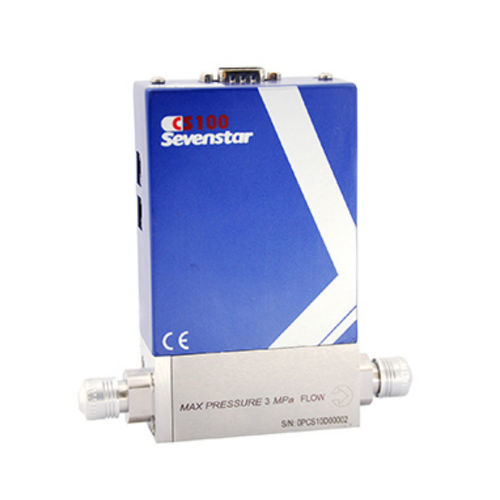

Mass flow meter CS100 series

for liquidsfor gasRS485

CS100 MFCs derive from the CS series, sharing the same technologies, Constant-power Sensor, Digital Sensor Balance and Valve Correct Pedestal Technology. CS100 can be customized to specific requirements. Additionally with Customer Ground Correction (CGC) function CS100 is flexible in different operating environments and eliminate the bad influence to accuracy because of the improper connecting of ground wires. 　Features 　　1. High Accuracy and Fast Response 　　The accuracy of the CS100 MFC has been improved to ±1.0% of S.P., and its’ response time of less than1 sec. 　　2. Miscellaneous Functions 　　Powerful customer software comes standard with each model, while additional functions such as multi-gas，multi-range，auto-zero, alarms, soft start, and delay are available as customer selections. 　　3. Customization 　　CS100 can be customized to ±15V double-end or +24V single-end power supply, Rs485 interface, digital or analog input and output, metal seal or elastomer seal, SEMI standard or compact mechanical dimension.
