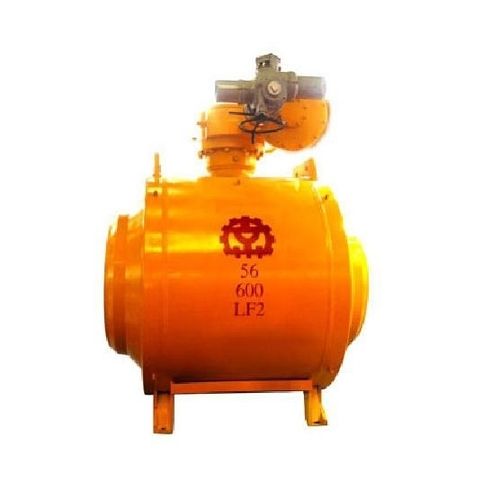

Fully-welded valve QH*67Fballmanualpneumatic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- manual, pneumatic, electric, hydraulic
- Function
- shut-off
- Media
- for water, for CNG, petroleum, for natural gas
- Body
- fully-welded
- Other characteristics
- anti-static, fire-safe
- DN
Max.: 1,500 mm
(59.055 in)Min.: 50 mm
(1.969 in)- Temperature
Max.: 121 °C
(250 °F)Min.: -46 °C
(-51 °F)
Description
Product type
On/off valve
Valve Type -
Fully Welded Ball Valve
Model
QH*67F
Size
NPS 2 ～NPS 60/DN50～DN1500
Seal type
Soft Seated
Operating temp.
-46℃～121℃
Operating pressure
CLASS 150- CLASS 2500
Material
WCB/A105/LCB/LF2/CF8/F304/CF8M/F316/F11/F51/F53/Inconel625 etc.
Standard
API 6D/API 608/BS5351/ISO 17292
Face to face
ASME B16.10
Connection
ASME B16.5、ASME B16.47、ASME B16.25
Test std.
API 598/API 6D/ISO 5208
Operation
manual, electric, hydraulic, pneumatic, gas over oil, electric over oil actuators
Application
water, petroleum and natural gas, CNG
Structure
DBB,DIB-1,DIB-2
Other remark 1
Fire-safe and anti-static design
Other remark 2
Large bore valve shall be supported
Other remark 3
Installed above-ground or underground
