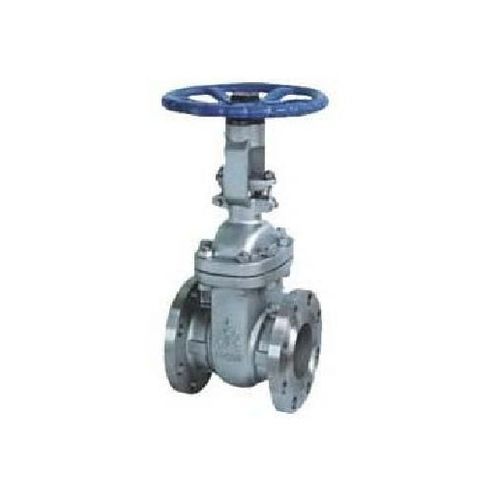

Wedge gate valve Z40Hwith handwheelpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- wedge gate
- Operation
- with handwheel, pneumatic, electric
- Function
- shut-off
- Media
- for oil, for chemicals, for petroleum
- Applications
- for the chemical industry, for the petroleum industry
- DN
Max.: 1,500 mm
(59.055 in)Min.: 50 mm
(1.969 in)- Temperature
Max.: 593 °C
(1,099 °F)Min.: -196 °C
(-321 °F)
Description
Wedge Gate Valve
Product type
On/off type
Valve Type
Wedge Metal-seated Gate Valve
Model
Z40H
Size
NPS2~NPS60/DN50~DN1500
Operating temp.
-196℃～593℃ acc. to material
Operating pressure
CLASS150-CLASS2500
Material
A216 WCB/WCC/A217 WC6/WC9/C5/C12/C12A/CA15/A351 CF8/CF8M/CF3/CF3M/CF8C/CN3MN/CK3MCUN/CN7M/A352 LCB/LCC/A494 CW-6MC/CU5MCuC/M35-1/A890 4A(CD3MN)/5A(CE3MN)/6A(CD3MWCuN)/ASME B 148 C95800/C95500 .etc
Standard
API 600/ASME B16.34
Face to face
ASME B16.10
Connection
ASME B16/ASME B16.47/ASME B16.25
Test std
API 598/ISO 5208
Operation
handwheel, electric, pneumatic
Application
Power plant, oil refining, petrochemical,chemistry etc.
Seal material
13Cr,STL,NBR etc.
Remark 1
O&S Y, position indicator
Remark 2
Wedge Gate
