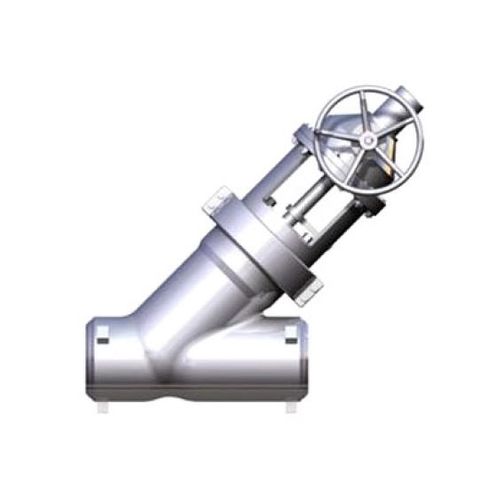

Y type globe valve
Product type
Switch valve
Product description
Y type globe valve
Model
J43H
Size
NPS 2”~24”(DN50~DN600)
Operating temperature
-46℃~593℃acc to material
Operating pressure
CLASS 150~2500(PN 20~PN420)
material
A216 WCB、WCC; A217 WC6、WC9、C5、C12、C12A、CA15; A351 CF8、CF8M、CF3、CF3M、CF8C、CN3MN、CK3MCUN、CN7M; A352 LCB、LCC; A494 CW-6MC、CU5MCuC、M35-1; A890 4A(CD3MN)、5A(CE3MN)、6A(CD3MWCuN); ASME B 148 C95800、C95500 .etc
standard
API 623、BS 1873 、ASME B16.34
Face to face
ASME B16.10
Connecting end
ASME B16.5、ASME B16.25
Test standard
API 598、ISO 5208、GB/T 26480、GB/T13927
Operation
handwheel ,worm wheel wheel , electric ,pneumatic
Application fields
electric power industry, petroleum refining, petrochemical industry, offshore oil, chemical industry and etc.
Seal material
13Cr , STL
Other remark 1
Y type structure to reduce the flow resistance, guild disc to reduce the impactive and to guarantee the sealing property.
Other remark 2
small force of friction, long service life
Other remark 3
The disc shape including: tapered, needle type, spheroidal, parabola, apply to adjust the flow.
