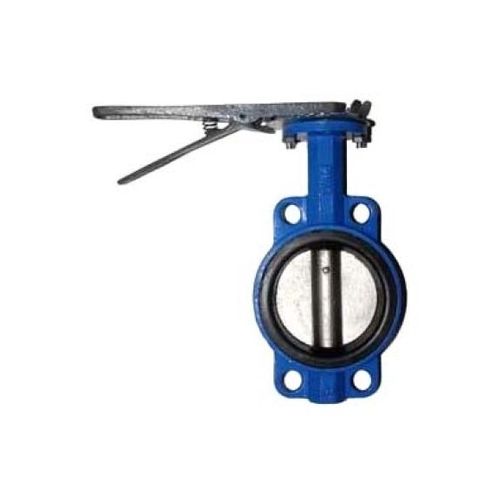

Butterfly valve D41X/Fwith handwheelpneumaticelectric
Add to favorites
Compare this product
Characteristics
- Type
- butterfly
- Operation
- with handwheel, pneumatic, electric
- Function
- control
- Media
- for water, for oil, for gas
- Applications
- food
- DN
Max.: 1,200 mm
(47.244 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 50 bar
(725.2 psi)Min.: 20 bar
(290.1 psi)- Temperature
Max.: 180 °C
(356 °F)Min.: -15 °C
(5 °F)
Description
Centerline Butterfly Valve
Product type
Switch Valve
Product
description
Centerline Butterfly Valve
Model
D41X/F
Size
NPS 2”～48”(DN50～DN1200)
Operating temperature
-15℃～180℃
Operating pressure
CLASS 150～300 （PN20～PN50）
Material
A216 WCB、WCC;A351 CF8、CF8M、CF3、CF3M、CF8C、A352 LCB、LCC .etc
standard
API 609、ASME B16.34
Face to face
ASME B16.10
Connecting end
ASME B16.5、ASME B16.47、ASME B16.25
Test standard
API 598、ISO 5208
Operation
handwheel ,worm wheel , electric ,pneumatic
Application fields
Water ,sewage, sea water,steam, natural gas, food, medicinal, oil and other acid-base pipeline
Other remark 1
small size, portability, easily to be repaired, can be installed in any where
Other remark 2
good sealing property, zero leakage
Other remark 3
double current, unconstrained installation
