Car brake tester QB.4roller
Add to favorites
Compare this product
Characteristics
- Applications
- for car
- Other characteristics
- roller
- Power per motor
3.7 kW
(5.03 hp)- Maximum load
4 t
(4.41 us ton)
Description
QB.4 — Brake tester with app-based control and ASA Livestream
Quality components
Power box and electronics
Testing workflow
Standard equipment
Scope of delivery
Technical specifications
- Real-time control via smartphone or tablet
- Ready for Android mobile devices by default
- No cabinets, PCs or license costs required
- Optional classic displays: analog, digital or TV
Quality components
- Standard motor brake
- Hot-dip galvanized frame and base unit
- Premium-coated rollers for high grip and low tyre wear
- Reinforced bearings and high-quality 2×3.7 kW motors

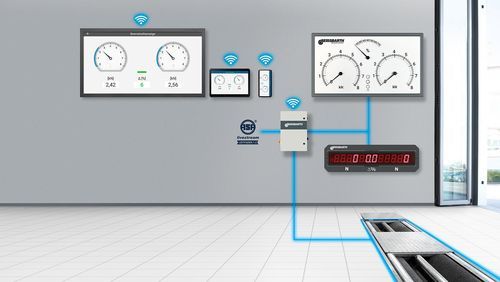

Power box and electronics
- All electronic components mounted outside the roller set
- Flexible display options, no Windows PC needed
- RJ45 Ethernet with ASA Livestream v1.2 interface as standard
Testing workflow
- Automatic testing procedure
- No external remote control required
- Automatic detection for all-wheel drive
- Program for electronic parking brakes (EPB)
- Optional upgrade with 4-point axle weight scales
- Compatible with common foundation types
Standard equipment
- Motor brake: increases motor lifespan and simplifies removal of the driving axle
- Galvanized critical components: corrosion protection for extended service life
- All-wheel drive detection: prepared for AWD and electric vehicles
- Premium-coated rollers: maximum grip with minimal abrasion
- App-based operation: replaces analog displays and PCs
Scope of delivery
- Brake tester with 700 mm rollers
- QB.4 control cabinet with ASA Livestream v1.2 | 230 V
- Android app
- 15 m cable set
Technical specifications
- Electrical connection: 3 × 230 V | 50–60 Hz
- Packaging (L × W × H): 2420 × 820 × 800 mm
- Gross weight: 469 kg
- Wheel diameter (min/max): 320 mm / 1000 mm
- Test width (min/max): 800 mm / 2200 mm
- Max. testable axle load: 2 t
- Max. drive-over load: 4 t
- Roller length: 700 mm; roller diameter: 205 mm; roller elevation: 25 mm
- Roller axle distance: 381 mm
- Measuring system: DMS
- Test speed: 5 km/h
- Motor power: 2 × 3.7 kW
- Power cable length: 15 m
- ASA Livestream: yes (standard)
