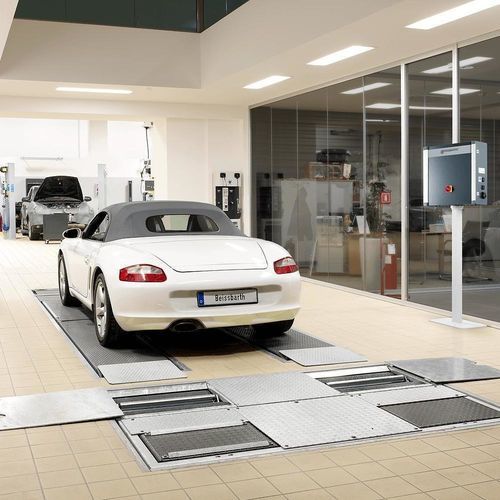

Car brake tester BD 4482

roller

Overview
BD car brake testers comply with applicable guidelines and are suitable for general vehicle inspections and workshop use. The modular design supports diagnostics, repair and service tasks. The tester can be expanded into a test lane for suspension and side-slip testing. Operation and result evaluation are available via analogue display or linked workshop PC.

New: Power-Box for the BD car series

• The Power-Box adds connectivity and simplifies installation of PC kits for direct linkage to the workshop computer.

Product number
1691600888

PC integration

• The integrated PC kit is designed for installation inside the Power-Box, enabling a direct connection to the workshop PC for visualization, data handling and printing.

Accessories & extensions

• Column for Power-Box
• PC trolley
• LCD display set for the display unit
• Professional ICperform PC-Kits (integrated or external, IR versions available)
• Pedal-force sensor (wireless)
• Roller covers
• IR remote control

Workshop PC functions

• Visualization of test procedures and results on screen
• Job processing, customer database and statistical evaluation
• Automatic printing and archiving of test reports
• Quick extension/conversion into a test lane; analogue display can be replaced by PC

Power-Box features

• Compact, service-friendly enclosure with safely stowed electronics
• Wall mount (standard) or column (optional)
• 230 V socket for technician laptop (separate supply may be required)
• Accessible main switch with emergency stop
• Integrated document pocket for technical documentation

Four PC connection options / PC kits

• Integrated ICperform PC-Kit (incl. ICperform software license and Tablet app license), part No. 1 691 601 964
• External ICperform PC-Kit (incl. ICperform software license and Tablet app license), part No. 1 691 601 965
• Integrated ICperform PC-Kit with Remote Control (incl. ICperform software license), part No. 1 691 601 963
• External ICperform PC-Kit with Remote Control (incl. ICperform software license), part No. 1 691 601 966

Minimum PC requirements

• Windows 11 Professional
• CPU 3 GHz (Intel Pentium Gen 12)
• 8 GB DDR5 RAM
• 512 GB SSD
• 6× USB ports
• 1× RS232 (for infrared remote control)
• 1× LAN

Technical specifications

• Packaging length: 3000 mm
• Packaging width: 820 mm
• Packaging height: 700 mm
• Gross weight: 567 kg
• Length: 660 mm
• Height: 280 mm
• Width: 2960 mm
• Max. wheel diameter: 1000 mm
• Max. rim diameter: 32"
• Measuring system: DMS
• Roller length: 1000 mm
• Roller elevation: 25 mm
• Min. rim diameter: 10"
• Roller diameter: 205 mm
• Min. test width: 800 mm
• Max. test width: 2800 mm
• Min. wheel diameter: 320 mm
• Roller axle distance: 381 mm
• Weight: 537 kg
• Test speed: 5 km/h
• Max. axle weight: 4 t
• Max. drive-over load: 4.0 t
• Height difference upper edge of roller to workshop floor: -10 mm
• Motor power: 5 kW
