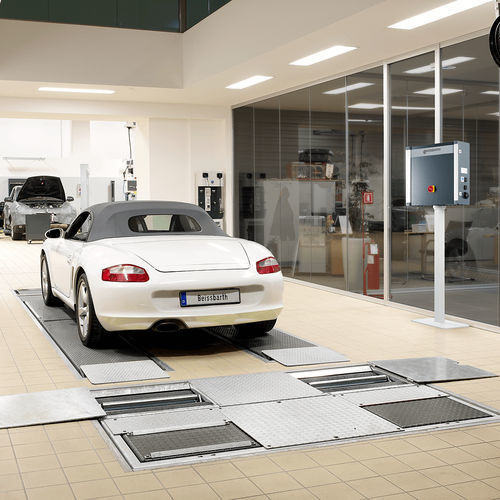

Car brake tester BD 4131 S20

roller

Overview
Beissbarth BD car brake testers comply with inspection guidelines and are suitable for general vehicle inspections. Modular by design, they can be expanded for diagnostics, repair and workshop service tasks and upgraded into a full test lane for suspension and side-slip testing. Operation, visualization and evaluation of test results can be performed via an analogue display or through a linked workshop PC.

Key benefits

• Compliant with inspection guidelines for car brake testing
• Modular design for expansion into diagnostics and workshop service functions
• Convertible into a test lane for suspension and side-slip testing
• Operation via analogue display or connected workshop PC for visualization and evaluation

More service – available accessories

• Column for the Power-Box
• PC trolley
• LCD display set for the display unit
• Professional IR PC kits (integrated or external)
• Pedal-force sensor (wireless version)
• Roller covers
• IR remote control

Power-Box for the BD car series

• Compact, service-friendly housing for all electronics
• All electronics safely stowed and easily accessible
• Wall-mountable or installable on optional column
• 230 V socket for technician laptop
• Accessible main switch with emergency shutdown
• Integrated door pocket for technical documentation

PC connection kits (to operate with PC)

• Integrated ICperform PC-Kit (includes ICperform Software license and Tablet app license), part No. 1 691 601 964
• External ICperform PC-Kit (includes ICperform Software license and Tablet app license), part No. 1 691 601 965
• Integrated ICperform PC-Kit with Remote Control (includes ICperform Software license), part No. 1 691 601 963
• External ICperform PC-Kit with Remote Control (includes ICperform Software license), part No. 1 691 601 966

Minimum PC requirements

• Windows 11 Professional
• CPU 3 GHz (Intel Pentium Gen 12)
• 8 GB DDR5
• 512 GB SSD
• 6× USB
• 1× RS232 (for infrared remote control)
• 1× LAN

Characteristics / technical specifications

• Article number: 1691600654
• Packaging length: 2420 mm
• Packaging width: 820 mm
• Packaging height: 700 mm
• Gross weight: 471 kg
• Length: 660 mm
• Height: 250 mm
• Width: 2360 mm
• Max. wheel diameter: 1000 mm
• Max. rim diameter: 32 in
• Measuring system: DMS
• Roller length: 700 mm
• Roller elevation: 25 mm
• Min. rim diameter: 10 mm
• Roller diameter: 205 mm
• Min. test width: 800 mm
• Max. test width: 2200 mm
• Min. wheel diameter: 320 mm
• Roller axle distance: 381 mm
• Weight: 441 kg
• Test speed: 5 km/h
• Max. axle weight: 2.5 t
• Max. drive-over load: 4.0 t
• Height difference upper edge of roller to workshop floor: -10 mm
