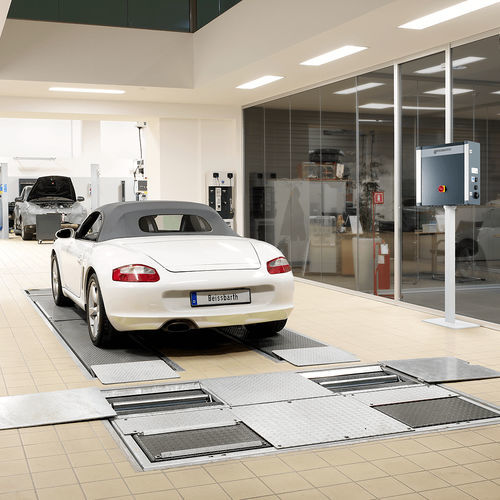

Car brake tester BD 4182

roller

Product overview
BD 4182 car brake tester is a guideline‑compliant, modular tester for general vehicle inspections, diagnostics and workshop servicing. It can be expanded into a full test lane for suspension and side slip testing. Test operation, visualization and evaluation are available via analogue display or PC.

Power-Box (new kit available)

• Optional Power-Box provides additional connectivity and a compact housing for electronics.
• Integrated PC kit designed for installation inside the Power-Box enables direct connection to the workshop PC.

Accessories & options

• Column for Power-Box
• PC trolley
• LCD display set for the display unit
• Professional IR PC kits (integrated or external)
• Pedal-force sensor (wireless version)
• Roller covers
• IR remote control

Access to functions via linked workshop PC

• On-screen visualization of test procedures and results
• Job management, customer database, statistics, print and archiving
• Automatic printing of test protocols
• Quick conversion and extension to a test lane
• Analogue display optional when using a PC

Power-Box — features

• Compact, service-friendly housing for all electronics
• Safe and easily accessible installation on wall or optional column
• 230 V socket for technician laptop or tester
• Main switch with emergency stop
• Integrated door pocket for documentation

PC kit options (for PC operation)

• Integrated ICperform PC-Kit (includes ICperform Software license and Tablet app license), part No. 1 691 601 964
• External ICperform PC-Kit (includes ICperform Software license and Tablet app license), part No. 1 691 601 965
• Integrated ICperform PC-Kit with Remote Control (includes ICperform Software license), part No. 1 691 601 963
• External ICperform PC-Kit with Remote Control (includes ICperform Software license), part No. 1 691 601 966

Minimum PC requirements

• Operating system: Windows 11 Professional
• CPU: 3 GHz (Intel Pentium Gen 12 or equivalent)
• RAM: 8 GB DDR5
• Storage: 512 GB SSD
• Interfaces: 6x USB, 1x RS232 (for infrared remote control), 1x LAN

Technical specifications

• Packaging length: 3000 mm
• Packaging width: 820 mm
• Packaging height: 700 mm
• Gross weight (packaged): 567 kg
• Length: 660 mm
• Height: 280 mm
• Width: 2960 mm
• Max. wheel diameter: 1000 mm
• Max. rim diameter: 32"
• Measuring system: DMS
• Roller length: 1000 mm
• Roller elevation: 25 mm
• Min. rim diameter: 10"
• Roller diameter: 205 mm
• Min. test width: 800 mm
• Max. test width: 2800 mm
• Min. wheel diameter: 320 mm
• Roller axle distance: 381 mm
• Weight (unit): 537 kg
• Test speed: 5 km/h
• Max. axle weight: 2.5 t
• Max. drive-over load: 4.0 t
• Height difference upper edge of roller to workshop floor: -10 mm
• Motor power: 3.7 kW
