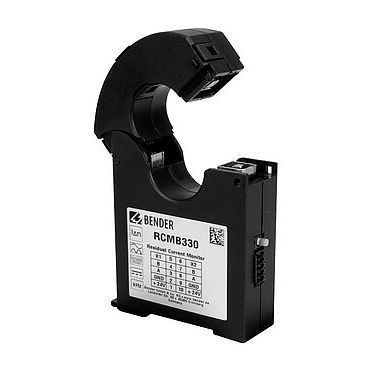

Residual current monitoring module LINETRAXX® RCMB330

RS-485Modbus

AC/DC sensitive residual current monitoring module with integrated split-core measuring current transformer The RCMB330 residual current monitoring modules are intended for measuring AC and DC fault currents in earthed systems (TN and TT systems). The modules are able to measure residual currents IΔ = 10…500 mA in a frequency range of DC…100 kHz. Two separately adjustable response values allow a distinction to be made between prewarning and main alarm. The modules feature an RS-485 interface with Modbus RTU which can be used to transfer measured values and alarm values. Setting parameters is also possible via this interface. Features Continuous residual current monitoring in compliance with DGUV Vorschrift 3 (German Accident Prevention Regulation 3) Easy DIN rail or screw mounting RS-485 interface with Modbus RTU (reading out measured values/setting parameters) Frequency range DC…100 kHz Multicolour LED for operation and status messages Digitally adjustable filters for AC/DC sensitive measured value acquisition (lowpass filters, type B acc. to IEC 6075Separate evaluation of the AC and DC components as well as the RMS value of the residual current possible Installation without mechanical separation of the primary conductors Extension or modification of functionalities through software updates via Modbus Insensitive to load currents due to magnetic screen Supply voltage DC 24 V5, type B+ acc. to VDE 0664-400)
