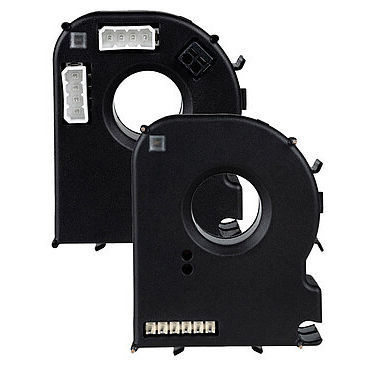

Residual current monitoring module RCMB130

defectcompactRS-485

The AC/DC sensitive residual current monitoring module monitors electrically earthed power supplies up to 300 V and connected loads up to nominal currents of 32 A for leakage and fault currents. The module is intended for installation in distribution equipment such as PDUs (Power Distribution Units), outlet boxes or multiple socket-outlets and is supplied with DC 12…24 V. The RCMB131-01 is designed for installation in PDUs and outlet boxes. The module can communicate with a master via an RS-485 interface via Modbus RTU. The RCMB131-02 is designed for installation in PDUs and outlet boxes. The module outputs the rms value of the residual current via a PWM output, which is read out and evaluated by a higher-level circuit. The RCMB132-01 is designed for installation in PDUs and outlet boxes. The module can communicate with a master via an RS-485 interface via Modbus RTU. It is possible to connect several devices in a daisy chain. For this purpose, the RCMB132-01 provides two identical connectors for RS-485 (incl. power supply). The products of the RCMB13x series are shipped in bulk and come pre-configured. This makes them particularly suitable for serial integration into power distribution systems, machines or the like by the respective manufacturers (OEMs). Features AC/DC sensitive leakage and fault current monitoring for preventive maintenance Suitable for PCB mounting (only RCMB131-x) High resolution for implementing equipment leakage current monitoring Measured value and alarm transmission via Modbus RTU (RS-485) (only RCMB13x-01) Measurement signal output via PWM output (only RCMB131-02) Frequency range DC…2 kHz
