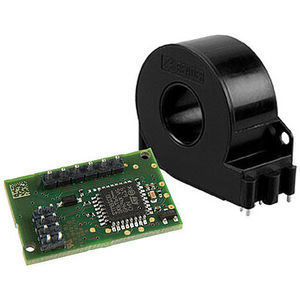

Residual current monitoring module RCMB104 chipset D0569

charging stationfor EV chargersmart

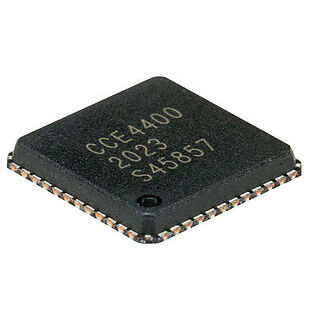

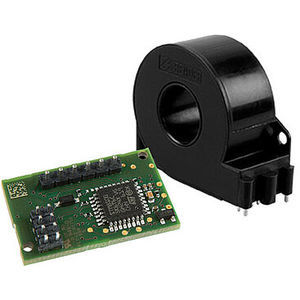

The RCMB104 chipset D0569 for AC/DC sensitive residual current monitoring is used in combination with a measuring current transformer and a type A RCD provided in the installation for fault current monitoring of AC charging systems for electric vehicles in which AC or DC fault currents can occur. Depending on the variant, the chipset is suitable for integration into a charging unit (Mode 2, IC-CPD) in accordance with IEC 62752 or UL 2231-2 (CCID5 or CCID20). Our components for measuring fault currents provide you with a state-of-the-art solution for reliable measurement in various applications. The combination of the powerful CCE4400 sensor, the intelligent microcontroller and the flexible firmware makes this system an outstanding choice for your IC-CPD requirements. Rely on Bender for precision, conformity and safety in your electrical installation. The centrepieces of this advanced solution are the Bender ASIC CCE4400 and a powerful microcontroller with firmware D0569. Features Four outputs (Switch1, Switch2, Error, PWM) Measuring range ±300 mA Residual current resolution 0.2 mA Patented measurement technology (patents: EP 2 571 128 / US 9,397,494 / ZL 201210157968.6 / CN 103001175, EP 2 813 856) Load current up to 32 A RMS (single-phase) or 3 x 32 A RMS (three-phase) (depending on device) Fault output (integrated self monitoring and test functions) High insensitivity to external interferences Available variants for application in accordance with IEC 62752 and UL 2231-2 Wide range of use even in severe environments (e.g. in the event of external interference fields)
