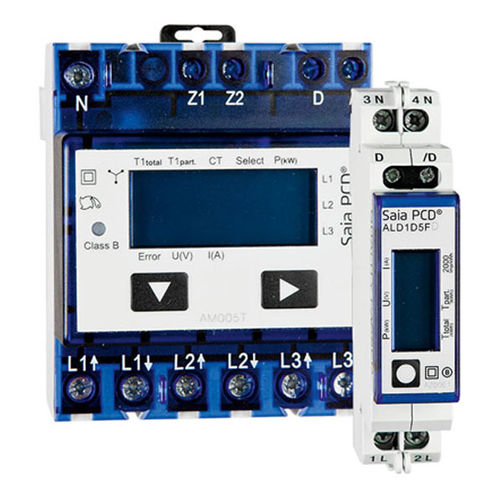

MID certified electrical energy meter B9310100 series

single-phasethree-phaseDIN rail

Overview
All devices of the PEM series measure energy and power values alongside multiple other measured parameters. For billing points subject to legal calibration, MID-approved energy meters are suitable. Bender supplies MID-approved variants with Modbus RTU communication for integration in industrial energy monitoring systems.

Features

• Energy meter with Modbus RTU (RS-485) interface
• MID approved for billing applications
• 7-digit energy display
• Automatic detection of bus transmission rate and parity
• Resettable partial readings
• Measures active energy and additional parameters: current, voltage, power, cos(phi)
• DIN-rail mounting
• Provision for lead sealing using an accessory cap

Applications

• Recording of key energy management data
• Suitable for billing and metering points

Energy meter Variant(s)
Type | Description | Art. No.
ALD1 | Energy meter 1Ph/32 A MID Modbus RTU | B93101005
ALE3 | Energy meter 3Ph/65 A MID Modbus RTU | B93101006
AWD3 | Energy meter 3Ph/6 A MID Modbus RTU | B93101007
PCD7 | S0 pulse counter (four-fold) with Modbus RTU | B93101008

Optional Accessories
Description | Art. No.
Sealable cover for ALD1 (two per counter) | B93101009
Sealable cover for ALE3/AWD3 (four per counter) | B93101010

Downloads (available)
Datasheet (Energy meter) available in PDF; tender texts available in RTF for listed variants.

Technical specifications

• MID conformity (suitable for billing applications)
• Modbus RTU communication; automatic baud rate and parity recognition
• 7-digit display for energy values
• Measures: active energy, current, voltage, power, cos(phi)
• Resettable partial readings
• DIN-rail mounting
• Provision for lead sealing via accessory cap
• Available variants for single-phase and three-phase systems and a pulse counter option
