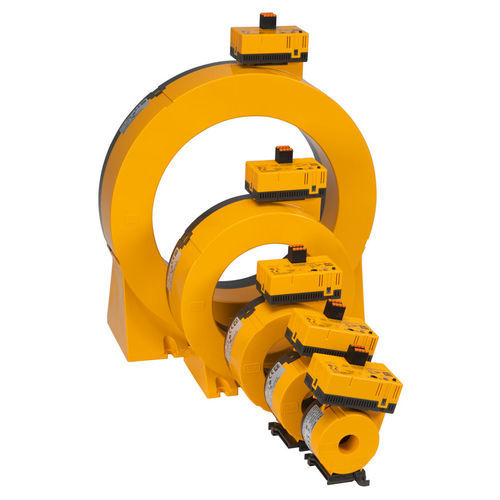

Current transformer LINETRA ® CTUB100 series

instrumentencapsulatedIEC

Overview
The CTUB100 series are measuring current transformers composed of CTBC… cores and CTUB10… electronic modules. They convert AC and DC currents into an evaluable measurement signal and are connectable to compatible evaluators. Connection to the evaluator is via a 2‑ or 6‑core cable. Units are suitable for DC, AC and 3(N)AC systems.

Features

• Combined test and reset button
• Multicolour LED for operation, fault and status messages
• Exchangeable electronic module without mechanical separation of the primary conductors
• Option to extend/retrofit or modify functionality if monitoring requirements change
• Full magnetic shield versions (P) reduce sensitivity to load and inrush currents (CTBC20P…210P)
• Monitoring of the connection to the measuring current transformer
• Supply voltage: DC ±12 V (CTUB101 variants) or DC 24 V (CTUB102 / CTUB105 variants)

Intended evaluators / system use

• CTUB101 variants: for RCMA420 / RCMA423 (supplied DC ±12 V from evaluator via 6‑core cable)
• CTUB102 / CTUB105 variants: for RCMS410 / RCMS425 / RCMS460 / RCMS490 and EDS441LAB (require DC 24 V supply for CTUB102/CTUB105)
• Suitable for DC, AC and 3(N)AC systems
• Connection via 2‑core or 6‑core cable depending on type

Variants (table)
Type | Suitable for evaluator | Supply voltage | Current transformer diameter | Shielding | Art. No.
CTUB101-CTBC20 | RCMA420, RCMA423 | DC ±12 V | ø 20 | - | B78120010
CTUB101-CTBC20P | RCMA420, RCMA423 | DC ±12 V | ø 20 | P | B78120020
CTUB101-CTBC35 | RCMA420, RCMA423 | DC ±12 V | ø 35 | - | B78120012
CTUB101-CTBC35P | RCMA420, RCMA423 | DC ±12 V | ø 35 | P | B78120022
CTUB101-CTBC60 | RCMA420, RCMA423 | DC ±12 V | ø 60 | - | B78120014
CTUB101-CTBC60P | RCMA420, RCMA423 | DC ±12 V | ø 60 | P | B78120024
CTUB101-CTBC120 | RCMA420, RCMA423 | DC ±12 V | ø 120 | - | B78120016
CTUB101-CTBC120P | RCMA420, RCMA423 | DC ±12 V | ø 120 | P | B78120026
CTUB101-CTBC210 | RCMA420, RCMA423 | DC ±12 V | ø 210 | - | B78120018
CTUB101-CTBC210P | RCMA420, RCMA423 | DC ±12 V | ø 210 | P | B78120028
CTUB102-CTBC20 | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 20 | - | B78120011
CTUB102-CTBC20P | RCMS410, RCMS425, RCMS460, RCMS490, EDS441LAB | DC 24 V | ø 20 | P | B78120021
CTUB102-CTBC35 | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 35 | - | B78120013
CTUB102-CTBC35P | RCMS410, RCMS425, RCMS460, RCMS490, EDS441LAB | DC 24 V | ø 35 | P | B78120023
CTUB102-CTBC60 | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 60 | - | B78120015
CTUB102-CTBC60P | RCMS410, RCMS425, RCMS460, RCMS490, EDS441LAB | DC 24 V | ø 60 | P | B78120025
CTUB102-CTBC120 | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 120 | - | B78120017
CTUB102-CTBC120P | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 120 | P | B78120027
CTUB105-CTUB120P | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 120 | P | B78120041
CTUB102-CTBC210 | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 210 | - | B78120019
CTUB102-CTBC210P | RCMS410, RCMS425, RCMS460, RCMS490 | DC 24 V | ø 210 | P | B78120029

Optional accessories
Spare parts electronic modules
Type | Supply voltage | Suitable for evaluator | Art. No.
CTUB101 | DC ±12 V | RCMA420/423 | B78120050
CTUB102 | DC 24 V | RCMS410/425/460/490, EDS441LAB | B78120051
CTUB105 | DC 24 V | RCMS410/425/460/490 | B78120054

Spare parts measuring current transformer cores
Type | Internal diameter | Art. No.
CTBC20 | 20 mm | B98120001
CTBC20P | 20 mm | B98120002
CTBC35 | 35 mm | B98120003
CTBC35P | 35 mm | B98120004
CTBC60 | 60 mm | B98120005
CTBC60P | 60 mm | B98120006
CTBC120 | 120 mm | B98120007
CTBC120P | 120 mm | B98120020
CTBC210 | 210 mm | B98120008
CTBC210P | 210 mm | B98120021

Connecting cables
Length (m) | Connection to | Name | Art. No.
1 | RCMA42… | CTX-100 | B98110080
2.5 | RCMA42… | CTX-250 | B98110081
5 | RCMA42… | CTX-500 | B98110082
10 | RCMA42… | CTX-1000 | B98110083
1 | RCMS410, RCMS425, RCMS46…, RCMS49…, EDS441LAB | CTXS-100 | B98110090
2.5 | RCMS… | CTXS-250 | B98110091
5 | RCMS… | CTXS-500 | B98110092
10 | RCMS… | CTXS-1000 | B98110093

Voltage supply
Type | max. connected current transformers | Art. No.
STEP-PS/1 AC/24 DC/0.5 | 4 | B94053110
STEP-PS/1 AC/24 DC/1.75 | 14 | B94053111
STEP-PS/1 AC/24 DC/4.2 | 34 | B94053112

Accessories
Type designation | Art. No.
Snap-on mounting for CTBC20 and CTBC20P | B91080111
Snap-on mounting for CTBC35 and CTBC35P | B91080112

Technical specifications

• Series designation: LINETRAXX® CTUB100 series
• Function: measuring current transformers (combination of CTBC cores and CTUB10x electronic modules)
• System compatibility: DC, AC, 3(N)AC
• Connection: 2‑core or 6‑core cable to evaluator
• Supply voltages: DC ±12 V (CTUB101), DC 24 V (CTUB102 / CTUB105)
• Compatible evaluators: RCMA420/423, RCMS410/425/460/490, EDS441LAB (depending on variant)
• Available internal diameters: 20, 35, 60, 120, 210 mm
• Shielding: standard and P (full magnetic shield) versions
• Exchangeable electronic modules enable retrofit without mechanical separation of primary conductors
• Monitoring of transformer connection, multicolour LED and combined test/reset control
