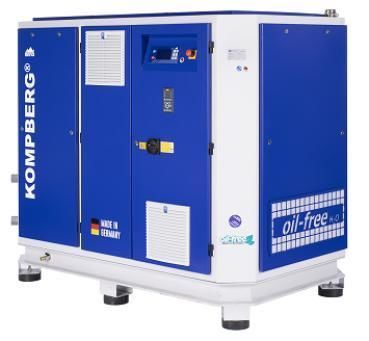

Screw compressor KOMPBERG® ZXF / ZWF

rotaryairpneumatic

Overview
BERG Kompressoren KOMPBERG® ZXF and ZWF are oil-free screw compressor ranges designed for applications requiring 100% oil-free compressed air. ZXF are two-stage, air-cooled units; ZWF are water-injected units where water replaces oil for cooling, sealing and lubrication to deliver oil-free air and near-isothermal compression.

KOMPBERG® ZXF (Oil-free, air-cooled)

• 100% oil-free rotary screw compression element
• ISO 8573-1 CLASS 0 air purity (manufacturer claim)
• Two compression stages with air-cooled system
• Low speed-to-capacity ratio and improved rotor coating for higher efficiency
• Rugged design for industrial installations with low maintenance requirements
• No oil contamination downstream

KOMPBERG® ZWF (Oil-free, water-injected)

• Water replaces oil in the compression chamber to guarantee oil-free compressed air
• Water provides cooling and sealing, enabling nearly isothermal compression and improved energy efficiency
• Integrated water treatment to maintain circuit water quality
• Compact footprint and removable side doors for maintenance access
• Direct-driven options on some models to reduce transmission losses

Product benefits & features (general)

• Guaranteed oil-free output suitable for food, pharmaceutical, electronics and medical applications
• Factory testing to verify performance and compliance with specifications
• Available options: variable speed control, heat recovery, SIEMENS motors and controls on selected models
• Low noise and vibration designs for selected units
• Reduced operating costs through optimized cooling and efficient compression elements

What is an oil-free screw compressor?
An oil-free screw compressor operates without oil in the compression chamber. This is achieved either by using specially coated rotors and engineered clearances (air-cooled designs) or by injecting water into the compression chamber to provide lubrication and cooling (water-injected designs). Oil-free compressors are used where oil contamination is unacceptable.

How do oil-free and water-injected screw compressors work?
Air-cooled oil-free designs rely on special materials, coatings and precise rotor clearances to avoid metal-to-metal contact. Water-injected designs introduce water into the compression chamber to form a sealing and cooling medium that prevents oil use and reduces temperature rise during compression.

Technical Data — KOMPBERG® ZXF
Model | Capacity 8 bar [m3/min] | Capacity 10 bar [m3/min] | Dimension (LxWxH) [mm] | Nominal motor power [kW] | Compressed air connection | Cooling air demand [m3/h] | Weight [kg]
ZXF 55 | 7.9 | 6.6 | 2500 x 1400 x 2000 | 55 | G 1 1/2 | 16500 | 3400
ZXF 75 | 12 | 9.7 | 2800 x 1600 x 2000 | 75 | G 2 | 16500 | 3700
ZXF 90 | 13.9 | 12.8 | 2800 x 1600 x 2000 | 90 | G 2 | 11700 | 3200
ZXF 110 | 18 | 15.7 | 3300 x 2200 x 2000 | 110 | G 2 | 25000 | 4300
ZXF 132 | 21.21 | 19 | 3400 x 2100 x 2400 | 132 | G 3 | 19500 | 4500
ZXF 160 | 25.7 | 22.5 | 4000 x 2200 x 2200 | 160 | G 3 | 32500 | 5000

Technical Data — KOMPBERG® ZWF
Model | Capacity 6 bar [m3/min] | Capacity 8 bar [m3/min] | Capacity 10 bar [m3/min] | Capacity 13 bar [m3/min] | Dimension (LxWxH) [mm] | Motor power [kW] | Connection | Weight [kg]
ZWF 40 | 1.75 - 6.30 | 2.00 - 6.00 | 2.20 - 5.40 | 2.70 - 4.80 | 2182 x 942 x 1850 | 40 | G 1 1/2 | 950
ZWF 55 | 1.55 - 10.30 | 1.55 - 9.60 | 1.55 - 8.00 | - | 2074 x 1307 x 1754 | 55 | G 2 | 1650
ZWF 68 | 1.55 - 11.25 | 1.55 - 11.20 | 1.55 - 10.25 | - | 2074 x 1307 x 1754 | 68 | G 2 | 1650
ZWF 85 | - | 1.55 - 11.43 | 1.55 - 11.43 | 1.55 - 10.12 | 2074 x 1307 x 1754 | 85 | G 2 | 1750
ZWF 120 | 7.60 - 22.55 | 9.60 - 20.68 | 9.40 - 18.68 | 11.09 - 15.40 | 2561 x 1632 x 1853 | 120 | G 2 1/2 | 2390

Additional product notes

• ZXF motor power range shown in model list: 55–160 kW (air-cooled)
• ZWF water-injected models shown from 40–120 kW
• Typical applications: food & beverage, pharmaceuticals, electronics, medical and other industries requiring oil-free compressed air

Technical specifications

• 100% oil-free compression (ZXF: oil-free element; ZWF: water injection)
• ISO 8573-1 CLASS 0 air purity (manufacturer claim)
• Available options: variable speed, SIEMENS drives, heat recovery, water treatment (ZWF)
• Compressed air connections: G 1 1/2, G 2, G 2 1/2, G 3 depending on model
• Dimensions, cooling air demand and weight vary by model as listed above
