Analysis gas monitoring equipment Mogas93

for process monitoringfor detectionfor industrial use

Product overview

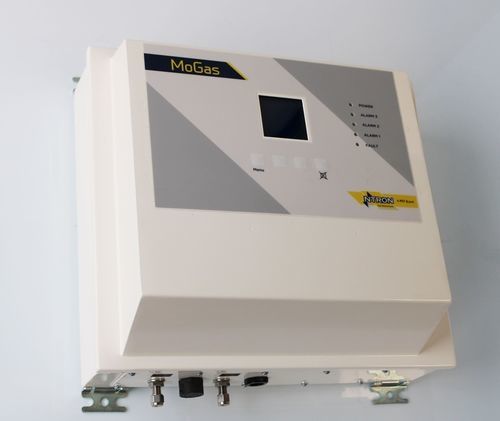

The Mogas93 is a wall-mounted medical gas purity analyzer designed for continuous monitoring and verification of oxygen generation and distribution systems. It measures oxygen (O2), carbon dioxide (CO2), carbon monoxide (CO) and dewpoint to support medical gas quality control and safety.

Applications

• Validation of medical oxygen generators
• Monitoring product purity on oxygen generators and compressed air systems
• Pharmaceutical production and process monitoring
• Bottling and filling plants, including oxygen bottling lines

Key features

• Simultaneous measurement of up to four parameters: O2, CO2, CO and dewpoint
• Oxygen measurement options: zirconia or paramagnetic sensors (depending on configuration)
• Non-dispersive infrared (NDIR) CO2 sensor and electrochemical CO sensor options
• Large backlit LCD for clear gas concentration readout
• Optional audible and visual alarms; programmable O2, CO and CO2 alarm thresholds
• Analog outputs: 4–20 mA per channel; one common fault relay for system integration
• Fast response times (e.g. O2 T90 < 3 s for zirconia/paramagnetic)

Sensor measurement ranges (examples)

• Oxygen (Zirconia): 0–96% O2
• CO2 (Infrared): 0–1000 ppm
• CO (Electrochemical): 0–50 ppm

Technical data (examples)
O2 | Zirconia | 100–240 VAC | 4–20 mA | T90 < 3 s | -20°C to +50°C | Range 0–96%
CO | Electrochemical | 100–240 VAC | 4–20 mA | T90 < 20 s | -30°C to +50°C | Detection limit 0.3 ppm (range up to 0–50 ppm)
CO2 | Infrared (NDIR) | 100–240 VAC | 4–20 mA | T90 < 20 s | -20°C to +50°C | Detection limit ~3 ppm (range up to 0–1000 ppm)
O2 | Paramagnetic | 100–240 VAC | 4–20 mA | T90 < 3 s | +5°C to +45°C | Sensitivity 0.2%

Notes
Optional integrated audible/visual alarms and programmable alarm outputs are available. Analogue interfaces (4–20 mA) and a common fault relay enable integration with PLCs and building management systems for continuous safety monitoring.

Characteristics / technical specifications

• Model: Mogas93 (wall-mounted medical gas purity analyzer)
• Brand: Ntron
• Product number / SKU: 06-239-P
• Power supply: 100–240 VAC
• Analog outputs: 4–20 mA per channel
• Common fault relay: 1
• Display: large backlit LCD
• Alarms: programmable O2, CO and CO2 alarms; optional audible/visual alarm
• Simultaneous measurement: up to 4 parameters (O2, CO2, CO, dewpoint)
• Typical response times: O2 T90 < 3 s; CO/CO2 T90 < 20 s
• Weight: 5 kg
