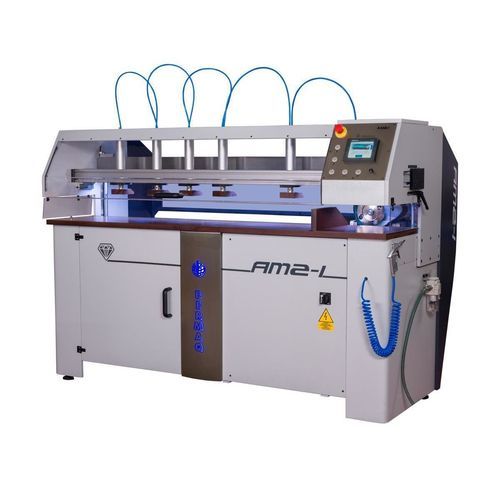

Aluminum polishing machine AM2-i

for plasticsPMMAfor polycarbonate

Description
The AM2-i is a semi-automatic edge polisher for machining and polishing methacrylate (PMMA), acrylic, polycarbonate (PC), aluminium, resins and other soft technical materials. It combines an automatic feed motor, touchscreen control and a manually tiltable head up to +45° to process straight edges (90°) and bevels. It accepts workpieces up to 120 mm thick in the straight position and up to 75 mm in the 45° bevel position. Supplied with BERMAQ® diamond tools for cutting and clear finishing.

Applications

• Signage and lettering: edge finishing of letters, symbols and 3D graphic elements
• Displays and POS: straight and beveled edges for retail and communication displays
• Decorative and acrylic art pieces requiring optical clarity and gloss
• Industrial/technical components in PMMA, PC and resins with high finish tolerances
• Small to medium series production with repeatable results

Materials

• Methacrylate (PMMA) / acrylic
• Polycarbonate (PC)
• Aluminium (light machining/finishing)
• Resins and other soft plastics compatible with diamond tooling

Equipment & features

• Manually tiltable head adjustable from -2° to +45° for straight and bevel polishing
• Automatic workpiece feed motor with adjustable feed rate up to 10 m/min
• Touchscreen interface for quick configuration of polishing parameters and cutting depth
• Five-clamp system ensuring stable, uniform clamping along the workpiece travel
• High-speed milling motor (adjustable 5,000–10,000 rpm) for roughing and fine finishing
• Cutting depth adjustable from 0 to 4 mm
• Integrated dust extraction system to reduce cleaning downtime and improve operator safety
• Delivered with BERMAQ® diamond tools (EIMQ-131001-BQ for cutting and EIMQ-131003-BQ for clear finishing)

Adjustability & options

• Head inclination from -2° to +45° for bevels up to 45°
• Feed rate and cutting depth adjustable according to material and finish requirements
• Optional additional BERMAQ® diamond tools for clear, matte or satin finishes

Manufacturing & quality
Built for intensive production with a stable structure (approx. 1,200 kg) and CE safety certification. Each unit undergoes production and testing controls to ensure low vibration, repeatable precision and long-run stability.

Technical specifications

• Effective length: 1,400 mm
• Maximum thickness: 120 mm (straight) / 75 mm (45°)
• Straight edges (90°): Yes
• Bevelling / angle polishing: Yes
• Minimum / maximum inclination: -2° / +45°
• Workpiece feed: Automatic
• Feed rate: Up to 10 m/min
• Milling motor speed: 5,000–10,000 rpm
• Cutting depth: 0–4 mm
• Workpiece clamping: Pressers
• Number of clamps: 5
• Power supply: 220 V 3PH / 380 V 3PH+N // 50 Hz / 60 Hz
• External dimensions: 2,300 x 1,300 x 1,600 mm
• Weight: 1,200 kg
• EC / CE safety certificate: Yes
• Integrated dust extraction: Yes
