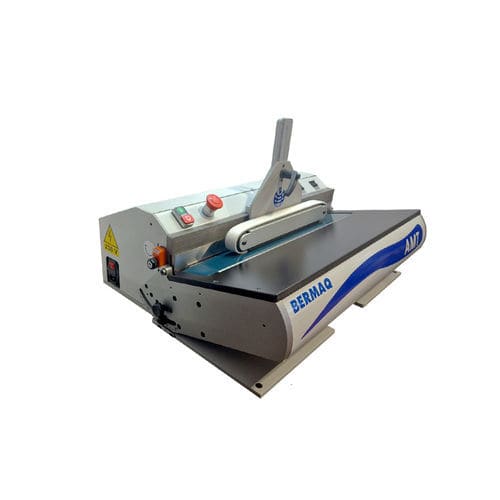

Bench polisher AMT

angleautomaticmotor-driven

Overview
The AMT is a methacrylate benchtop polisher with a tilting work table designed to polish straight edges (90°) and to create bevels and chamfers across an inclination range of -3° to +60° (fixed positions: 15°, 22.5°, 30°, 45°, 60°). It delivers straight and beveled finishes in a single machine using original BERMAQ® diamond tools and an automatic conveyor for uniform piece movement.

Applications

• Edges on letters, displays and three-dimensional graphic elements with transparent finishes
• Point-of-sale displays and POS supports requiring high surface quality
• Production of parts with diverse geometries treated in a single pass
• Graphic and signage industry: decorative elements and plaques with optical clarity
• Decoration and interior design: small pieces with angular finishing requirements
• Trophies, gifts and fashion jewelry: acrylic, PMMA and PC components with smooth glossy finish without manual rework

Equipment and key features

• Tilting table for quick change from straight edge polishing (90°) to bevel polishing (up to 1.5 mm) without additional tooling; predefined fixed positions reduce setup time
• Automatic conveyor belt with feed up to 3 m/min and presser clamp for stable, uniform workpiece advancement
• Works exclusively with genuine BERMAQ® diamond tools; includes EIMQ-119001-BQ as standard for clear finishing
• Compact, robust construction designed to minimize vibrations and ensure stability for repeatable finishes

Options

• Additional BERMAQ® diamond tools for different materials and finishes (clear, matte, satin, etc.)
• Fixed angle positions: 15°, 22.5°, 30°, 45°, 60°; free adjustment within -3° to +60°
• Adjustable cutting depth from 0 to 1.5 mm

Technical specifications

• Effective length: 700 mm
• Maximum thickness: 35 mm (straight) / 20 mm (45°)
• Straight edges (90°): Yes
• Bevelling / angle polishing: Yes
• Minimum / maximum inclination: -3° / +60°
• Workpiece feed: Automatic
• Feed rate: Up to 3 m/min
• Milling motor speed: 7,000 rpm – 12,000 rpm
• Cutting depth: 0 – 1.5 mm
• Workpiece clamping: Presser
• Number of clamps: 1
• Power supply: 230 V 1PH // 50/60 Hz
• External dimensions: 792 x 539 x 267 mm
• Weight: 72.5 kg
• EC safety certificate: Yes
• Note: Recommended values may be modified
