Aluminum polishing machine BOX-One
for plasticsfor compositesPMMA

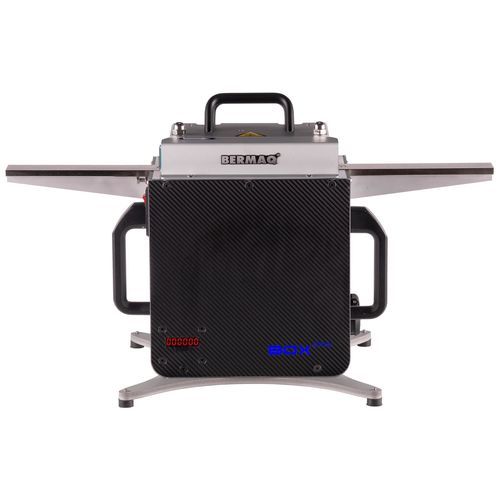

Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 2
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 3
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 4
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 5
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 6
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 7
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 8
Aluminum polishing machine - BOX-One - BERMAQ - for plastics / for composites / PMMA - image - 9
Add to favorites
Compare this product
Go to the BERMAQ website for more information

Characteristics

Machined material
for aluminum, for plastics, for composites, PMMA, for resin, for polycarbonate
Applications
for flat parts, Jewelry
Domain
industrial, for jewelry
Associated function
finishing, grinding, buffing, glossing, single
Other characteristics
automatic, edge, electric, bench-top, straight, horizontal
Working width

Max.: 1,000 mm
(39.37 in)

Min.: 700 mm
(27.56 in)

Description

Description
The BOX-One is a compact tabletop edge polisher derived from the AM2-i and AM-i technologies. It polishes straight edges at 90° on acrylics and similar materials, delivering a smooth, glossy finish in a single pass while reducing investment, time and manual effort. The machine includes a horizontal clamp presser and is designed for automatic grinding/polishing with manual workpiece feed.

Applications
  • Polishing acrylic and methacrylate displays
  • Decorative acrylic components
  • Stand and exhibition components
  • Gift items and jewelry components


Materials
  • Acrylic / PMMA / PC (polycarbonate)
  • Aluminium
  • Resins and other non-ferrous materials
  • Composites


Accessory — EXTENDER
The EXTENDER is an accessory that supports and guides larger workpieces (maximum thickness 30 mm). In the BOX + EXTENDER configuration the machine accommodates parts up to 1 m x 1 m. A 1,100 mm roller guide follows the piece during polishing to increase versatility and handling capacity.

Original BERMAQ® tools
BOX-One uses original BERMAQ® diamond tools engineered for long life and efficient performance. Tool options are available to process different materials and to obtain finishes from standard polishing to high-gloss transparent surfaces.

Main features
  • Portable tabletop edge polisher with compact design and integrated handles
  • Automatic operation that eliminates manual polishing passes
  • Includes chip extraction and a standard set of diamond tools
  • Manufactured in the EU with CE safety certification
  • Capable of delivering transparent, glossy and smooth edge finishes


Technical specifications
  • Effective length: 700 mm (1000 mm with EXTENDER)
  • Maximum thickness: 30 mm
  • Straight edges (90º): Yes
  • Bevelling / angle polishing: No
  • Minimum / maximum inclination: -
  • Workpiece feed: Manual
  • Feed rate: Up to 5 m/min
  • Milling motor speed: 18,000 rpm
  • Cutting depth: 0.5 mm
  • Workpiece clamping: Horizontal presser
  • Number of clamps: 1
  • Power supply: 220 V 1PH+n // 50/60 Hz
  • External dimensions: 663 x 325 x 375 mm
  • Weight: 15 Kg
  • EC safety certificate: Yes
  • Note: Recommended values; options may modify specifications
