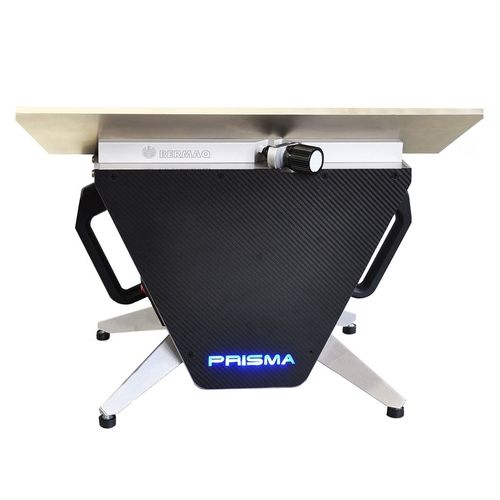

PMMA polishing machine PRISMA

Jewelryindustrialcutting

Description The PRISMA is the most compact benchtop edge beveler designed to mill and polish 44° and 45° bevels on methacrylate, acrylic, PMMA, PC, PVC, aluminum, resins and other non‑ferrous materials. It is intended for manufacturers of displays, boxes, urns and decorative items requiring transparent, glossy bevels in a portable, low‑footprint solution. The machine includes an integrated chip extraction system and operates with BERMAQ® bright diamond tools. A reversible worktable (44°/45°) enables perfectly aligned corners for seamless assemblies.

Applications

• Complete 44° and 45° beveling for assemblies without visible joints
• Displays and showcases: transparent, high‑gloss edge finishes for POS and visual communication
• Trophies and awards: precise geometries with glossy finishes on acrylic and PMMA
• Decoration and interior design: picture frames and decorative elements
• Gift and jewelry manufacturing: small components finished in a single pass
• Stands and trade fairs: on‑site finishing thanks to compact, portable design

Materials

• Methacrylate and acrylic
• PMMA and PC
• Resins
• Aluminum and Alucobond®
• Dibond® and other non‑ferrous materials

Equipment and main features

• Milling motor speed: 7,000–12,000 rpm
• Adjustable cutting depth: 0–3 mm (ability to remove from 0.1 mm at the edge tip)
• Reversible worktable for 44° and 45° bevels for aligned corners
• Includes BERMAQ® diamond tools (EIMQ-119001-BQ included)
• Integrated chip extraction system
• Manual workpiece feed and manual feed rate
• Mobile workpiece clamping; compact benchtop design with integrated handles
• Manufactured in Spain; final quality check before dispatch
• EC safety certificate

Included tools and options

• BERMAQ® Diamond Tool Set included (short cutting tool and clear finishing tool)
• Chip extraction included as standard
• Additional tool options available on request

Technical specifications

• Effective length: 700 mm
• Maximum thickness: 500 mm (8 mm full bevel)
• Straight edges (90°): No
• Bevelling / angle polishing: Yes
• Minimum / maximum inclination: 44° / 45°
• Workpiece feed: Manual
• Feed rate: Manual
• Milling motor speed: 7,000–12,000 rpm
• Cutting depth: 0–3 mm
• Workpiece clamping: Mobile
• Power supply: 220 V 1PH+n // 50Hz / 60Hz
• External dimensions: 550 x 300 x 360 mm
• Weight: 16 kg
• EC safety certificate: Yes
