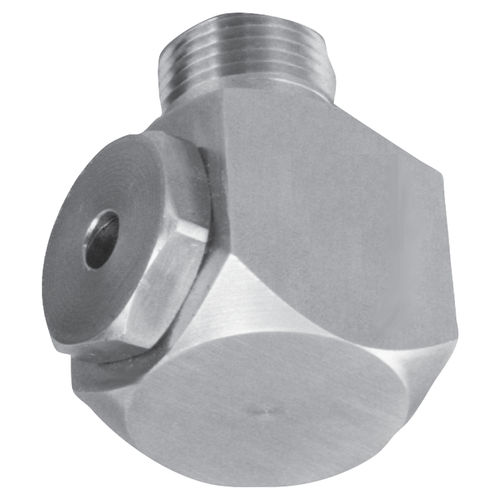

Liquid nozzle WTX seriessprayhollow-conestainless steel
Add to favorites
Compare this product
Characteristics
- Fluid
- for liquids
- Function
- spray
- Stream
- hollow-cone
- Material
- stainless steel, brass, nickel alloy
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 90°, 120°, 70°, 80°, 110°, 100°, 75°
- Other characteristics
- NPT, male, female, BSP, tangential, straight
- Orifice diameter
Min.: 0.04 in
Max.: 0.09 in
- Flow
Min.: 0.04 us gal/min
(0.15 l/min)Max.: 37.9 us gal/min
(143.47 l/min)- Pressure
Min.: 5 psi
Max.: 100 psi
Description
Oversized body for extended life
Large free passage
HOW SPRAY PATTERN IS ACHIEVED
Tangential hollow cone nozzles utilize a supply of liquid perpendicular to the direction of spray. Flow enters a swirl chamber without using internal components - allowing for maximum clog resistance.
