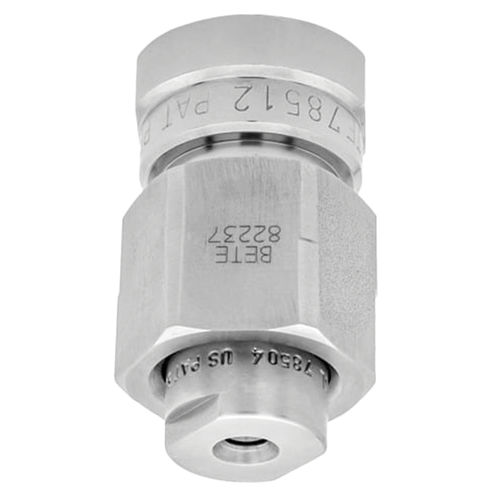

Liquid nozzle TDL seriesspraydryinghollow-cone
Add to favorites
Compare this product
Characteristics
- Fluid
- for liquids
- Function
- spray, drying
- Stream
- hollow-cone
- Material
- tungsten carbide, stainless steel
- Applications
- for the food industry, for the steel industry, for the chemical industry, fire protection, refueling, for petrochemical applications, for the mining industry, for water treatment
- Spray angle
- 70°, 75°
- Other characteristics
- compact, low flow rate
- Orifice diameter
Max.: 0.06 in
Min.: 0.02 in
- Flow
Max.: 2.05 us gal/min
(7.76 l/min)Min.: 0.05 us gal/min
(0.19 l/min)- Pressure
Max.: 5,000 psi
Min.: 200 psi
Description
Patented locking mechanism for quick and easy change-out
2-piece body for easy maintenance
Lower flow rates than TD series
Interchangeable swirl and orifice discs for variable patterns and flow rate
Ideal for small-scale applications and pilot tests
Replacement swirls and discs are readily available
HOW SPRAY PATTERN IS ACHIEVED
Spray exits on the same axis it enters
Internal channels or vanes causes the liquid to spin, and the centrifugal force exerted upon the geometry of the exit creates the spray pattern
Spray is concentrated on outer edges
Smaller droplets than full cone
