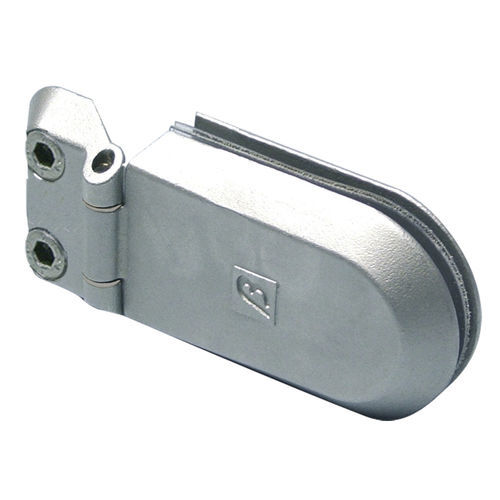

Friction hinge 2532 L
concealedstainless steelsocket

Friction hinge - 2532 L - BETT SISTEMI - concealed / stainless steel / socket
Friction hinge - 2532 L - BETT SISTEMI - concealed / stainless steel / socket
Friction hinge - 2532 L - BETT SISTEMI - concealed / stainless steel / socket - image - 2
Friction hinge - 2532 L - BETT SISTEMI - concealed / stainless steel / socket - image - 3
Add to favorites
Compare this product

Characteristics

Type
concealed, friction
Material
stainless steel
Installation
screw-in, socket
Opening angle
180°
Applications
glass door
Other characteristics
locking
Length

122.8 mm
(4.835 in)

Width

56 mm
(2.205 in)

Description

Use: for self-supporting doors (without external frame) made of glass with a thickness of 4-6 mmor Plexiglas panels with a thickness of 6-8 mm. Material AISI316 stainless steel hinge and plate, AISI303 stainless steel pin, AISI304 stainless steel screws, AISI303 stainless steel anti-friction washers, black polyethylene bushings and PVC seals (if provided). State of supply hinge complete with 2 M8x20 hexagon socket countersunk head screws and 2 M8x20 socket head screws in AISI304 stainless steel. Only for the glass version: 2 bushings and 2 seals, 1 mm thick. WARNINGS we recommend that you do not use stratified, non-hardened glass.
