Edge-mounted hinge 1453
polyamidealuminiumgalvanised steel

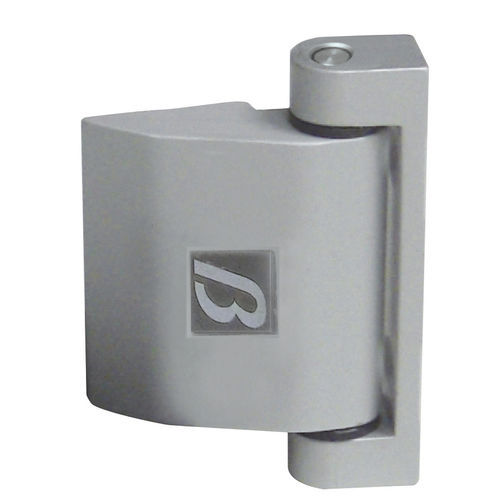

Edge-mounted hinge - 1453 - BETT SISTEMI - polyamide / aluminium / galvanised steel
Edge-mounted hinge - 1453 - BETT SISTEMI - polyamide / aluminium / galvanised steel
Edge-mounted hinge - 1453 - BETT SISTEMI - polyamide / aluminium / galvanised steel - image - 2
Edge-mounted hinge - 1453 - BETT SISTEMI - polyamide / aluminium / galvanised steel - image - 3
Edge-mounted hinge - 1453 - BETT SISTEMI - polyamide / aluminium / galvanised steel - image - 4
Add to favorites
Compare this product

Characteristics

Type
edge-mounted
Material
polyamide, aluminium, galvanised steel
Installation
screw-in, socket
Opening angle
180°
Applications
door
Other characteristics
threaded
Length

65.5 mm
(2.579 in)

Width

47 mm
(1.85 in)

Thickness

14 mm
(0.551 in)

Description

Use: applicable on aluminium tubes. Material anodised aluminium hinge, galvanised steel pin, polyamide bushings, galvanised steel nuts and bolts. State of supply complete with 2 UNI 7688 M5x14 screws, 2 UNI 5931 M5x10 socket head screws, 2 bushings, 2 caps, 2 M5 threaded inserts, 2 washers for M5 screws.
